threadpool.hh File Reference

#include <memory>
#include <queue>
#include <vector>
#include <boost/function.hpp>
#include <boost/thread.hpp>
#include <scroom/semaphore.hh>
#include <scroom/impl/threadpoolimpl.hh>

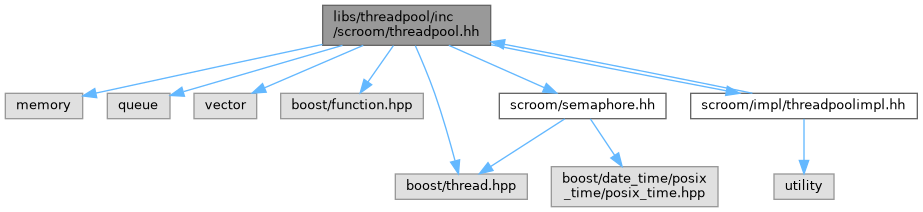

Include dependency graph for threadpool.hh:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	ThreadPool
class	ThreadPool::Queue
class	ThreadPool::WeakQueue
struct	ThreadPool::Job
class	ThreadPool::PrivateData
class	QueueJumper

Namespaces
namespace	Scroom
namespace	Scroom::Detail
namespace	Scroom::Detail::ThreadPool

Enumerations
enum	{   PRIO_HIGHEST = 100 , PRIO_HIGHER , PRIO_HIGH , PRIO_NORMAL ,   PRIO_LOW , PRIO_LOWER , PRIO_LOWEST }

Functions
ThreadPool::Ptr	CpuBound ()
ThreadPool::Ptr	Sequentially ()

Enumeration Type Documentation

anonymous enum

anonymous enum

Priorities for scheduling on the ThreadPool

Enumerator
PRIO_HIGHEST
PRIO_HIGHER
PRIO_HIGH
PRIO_NORMAL
PRIO_LOW
PRIO_LOWER
PRIO_LOWEST

{
  PRIO_HIGHEST = 100,
  PRIO_HIGHER,
  PRIO_HIGH,
  PRIO_NORMAL,
  PRIO_LOW,
  PRIO_LOWER,
  PRIO_LOWEST,
};

Function Documentation

CpuBound()

ThreadPool::Ptr CpuBound

(

)

ThreadPool for cpu-bound tasks

This ThreadPool has one thread per core in your system. For CpuBound tasks, this is the optimum. Make sure your tasks do not block or wait for anything.

Returns

a shared pointer to this ThreadPool instance

See also

https://github.com/kees-jan/scroom/wiki/StaticInitializationOrderFiasco

{
  static ThreadPool::Ptr const cpuBound = NotifyThreadList<ThreadPool>(std::make_shared<ThreadPool>(), "CpuBound threadpool");

  return cpuBound;
}

Referenced by Layer::fetchData(), CompressedTile::observerAdded(), and LayerCoordinator::tileFinished().

Here is the caller graph for this function:

Sequentially()

ThreadPool::Ptr Sequentially

(

)

ThreadPool for executing tasks sequentially

Tasks that are cpu and/or memory intensive (think "loading large bitmaps") are typically scheduled here, such that only one such task runs at a time.

Note that it is rare to do any actual work on this thread. Especially the cpu-intensive tasks are best delegated to CpuBound(). On this thread, you just wait for the work to complete.

Returns

a shared pointer to this ThreadPool instance

See also

https://github.com/kees-jan/scroom/wiki/StaticInitializationOrderFiasco

{
  static ThreadPool::Ptr const sequentially =
    NotifyThreadList<ThreadPool>(std::make_shared<ThreadPool>(1), "Sequential threadpool");

  return sequentially;
}

Referenced by PipetteHandler::onSelectionEnd(), WaitForAsyncOp::operator()(), and Scroom::TiledBitmap::scheduleLoadingBitmap().

Here is the caller graph for this function:
