Viewable Class Reference

#include <presentationinterface.hh>

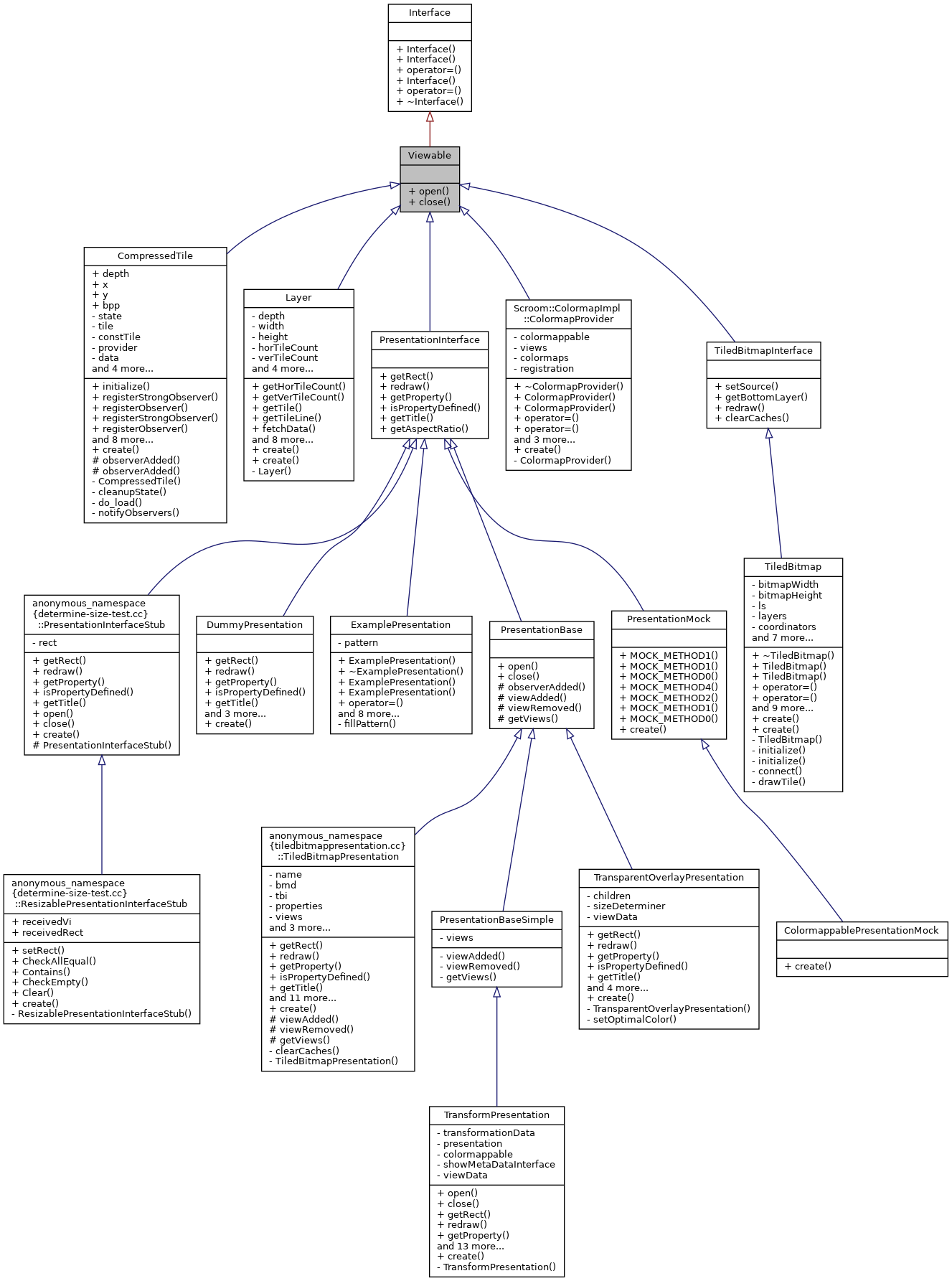

Inheritance diagram for Viewable:

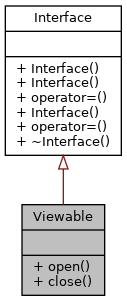

Collaboration diagram for Viewable:

Public Types
using	Ptr = boost::shared_ptr< Viewable >
using	WeakPtr = boost::weak_ptr< Viewable >

Public Member Functions
virtual void	open (ViewInterface::WeakPtr vi)=0
virtual void	close (ViewInterface::WeakPtr vi)=0

Additional Inherited Members
Private Member Functions inherited from Interface
	Interface ()=default
	Interface (const Interface &)=delete
Interface &	operator= (const Interface &)=delete
	Interface (const Interface &&)=delete
Interface &	operator= (const Interface &&)=delete
virtual	~Interface ()=default

Detailed Description

Implement Viewable if you want to be able to receive events when a View is created and/or deleted.

You'll want to receive these events if you either want to influence something on-screen (PresentationInterface, ColormapProvider), or want to store data related to a View (TiledBitmapInterface).

Member Typedef Documentation

Ptr

using Viewable::Ptr = boost::shared_ptr<Viewable>

WeakPtr

using Viewable::WeakPtr = boost::weak_ptr<Viewable>

Member Function Documentation

close()

virtual void Viewable::close ( ViewInterface::WeakPtr  vi )

pure virtual

Gets called just before the View is destroyed

Precondition

Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implemented in anonymous_namespace{determine-size-test.cc}::PresentationInterfaceStub, DummyPresentation, Layer, CompressedTile, PresentationBase, TransformPresentation, TiledBitmap, Scroom::ColormapImpl::ColormapProvider, and ExamplePresentation.

open()

virtual void Viewable::open ( ViewInterface::WeakPtr  vi )

pure virtual

Gets called just after the View is created

Precondition

Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implemented in anonymous_namespace{determine-size-test.cc}::PresentationInterfaceStub, DummyPresentation, TiledBitmap, ExamplePresentation, Layer, CompressedTile, PresentationBase, TransformPresentation, and Scroom::ColormapImpl::ColormapProvider.

---

The documentation for this class was generated from the following file:

• inc/scroom/presentationinterface.hh
