PresentationInterface Class Reference

#include <presentationinterface.hh>

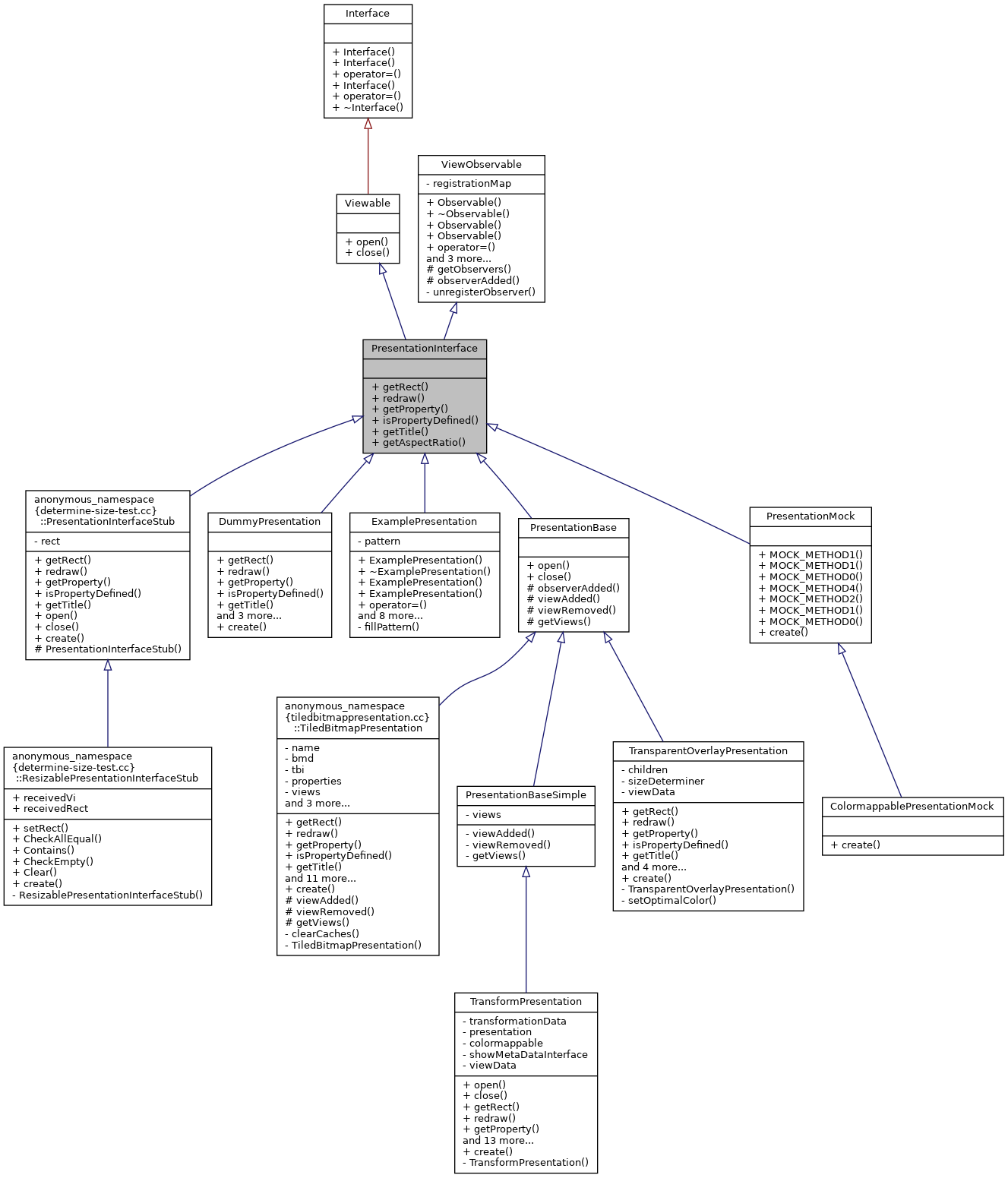

Inheritance diagram for PresentationInterface:

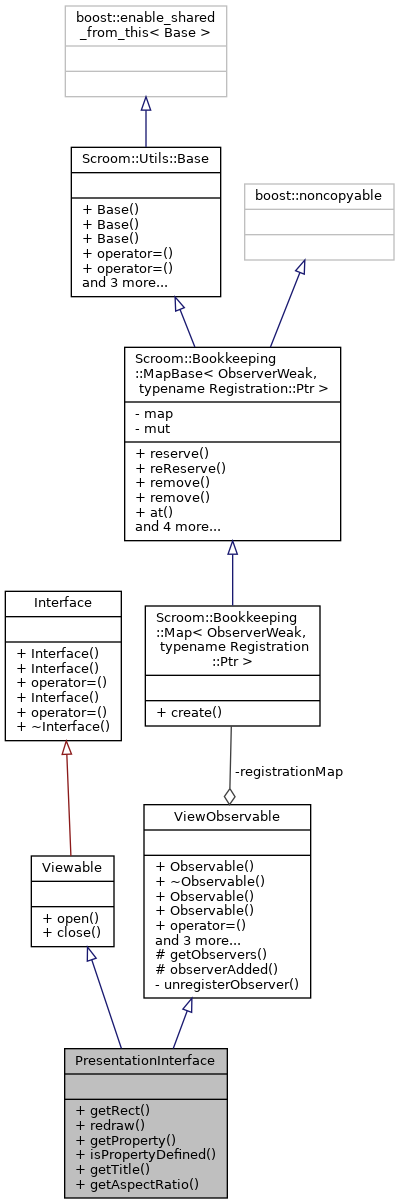

Collaboration diagram for PresentationInterface:

Public Types
using	Ptr = boost::shared_ptr< PresentationInterface >
using	WeakPtr = boost::weak_ptr< PresentationInterface >
Public Types inherited from Viewable
using	Ptr = boost::shared_ptr< Viewable >
using	WeakPtr = boost::weak_ptr< Viewable >
Public Types inherited from Scroom::Utils::Observable< T >
using	Observer = boost::shared_ptr< T >
using	Ptr = boost::shared_ptr< Observable< T > >

Public Member Functions
virtual Scroom::Utils::Rectangle< double >	getRect ()=0
virtual void	redraw (ViewInterface::Ptr const &vi, cairo_t *cr, Scroom::Utils::Rectangle< double > presentationArea, int zoom)=0
virtual bool	getProperty (const std::string &name, std::string &value)=0
virtual bool	isPropertyDefined (const std::string &name)=0
virtual std::string	getTitle ()=0
virtual Scroom::Utils::Point< double >	getAspectRatio () const
Public Member Functions inherited from Viewable
virtual void	open (ViewInterface::WeakPtr vi)=0
virtual void	close (ViewInterface::WeakPtr vi)=0
Public Member Functions inherited from Scroom::Utils::Observable< T >
	Observable ()
	~Observable () override
	Observable (const Observable &)=delete
	Observable (Observable &&)=delete
Observable	operator= (const Observable &)=delete
Observable	operator= (Observable &&)=delete
Scroom::Bookkeeping::Token	registerStrongObserver (Observer const &observer)
Scroom::Bookkeeping::Token	registerObserver (ObserverWeak const &observer)

Additional Inherited Members
Protected Member Functions inherited from Scroom::Utils::Observable< T >
std::list< Observer >	getObservers ()
virtual void	observerAdded (Observer const &observer, Scroom::Bookkeeping::Token const &token)

Detailed Description

Represent some 2D content

Anything that should be shown by Scroom in a window should implement this interface.

Objects implementing this interface are typically returned by NewPresentationInterface::createNew() and OpenPresentationInterface::open().

Member Typedef Documentation

Ptr

using PresentationInterface::Ptr = boost::shared_ptr<PresentationInterface>

WeakPtr

using PresentationInterface::WeakPtr = boost::weak_ptr<PresentationInterface>

Member Function Documentation

getAspectRatio()

virtual Scroom::Utils::Point<double> PresentationInterface::getAspectRatio ( ) const

inlinevirtual

Reimplemented in TransformPresentation.

{ return Scroom::Utils::make_point(1.0, 1.0); }

Here is the call graph for this function:

getProperty()

virtual bool PresentationInterface::getProperty ( const std::string &  name, std::string &  value  )

pure virtual

Return the value of the requested property

Parameters

[in]	name	The name of the requested property
[out]	value	The value of the requested property

Return values

true	if the property existed
false	if the property didn't exist

Implemented in anonymous_namespace{tiledbitmappresentation.cc}::TiledBitmapPresentation, TransformPresentation, TransparentOverlayPresentation, ExamplePresentation, anonymous_namespace{determine-size-test.cc}::PresentationInterfaceStub, and DummyPresentation.

getRect()

virtual Scroom::Utils::Rectangle<double> PresentationInterface::getRect ( )

pure virtual

Return the dimensions of your presentation

Implemented in TransformPresentation, anonymous_namespace{tiledbitmappresentation.cc}::TiledBitmapPresentation, anonymous_namespace{determine-size-test.cc}::PresentationInterfaceStub, TransparentOverlayPresentation, ExamplePresentation, and DummyPresentation.

getTitle()

virtual std::string PresentationInterface::getTitle ( )

pure virtual

Return the title of the presentation

Implemented in TransformPresentation, anonymous_namespace{tiledbitmappresentation.cc}::TiledBitmapPresentation, anonymous_namespace{determine-size-test.cc}::PresentationInterfaceStub, TransparentOverlayPresentation, ExamplePresentation, and DummyPresentation.

isPropertyDefined()

virtual bool PresentationInterface::isPropertyDefined ( const std::string &  name )

pure virtual

Return true if the named property exists

Implemented in anonymous_namespace{tiledbitmappresentation.cc}::TiledBitmapPresentation, TransformPresentation, TransparentOverlayPresentation, ExamplePresentation, DummyPresentation, and anonymous_namespace{determine-size-test.cc}::PresentationInterfaceStub.

redraw()

virtual void PresentationInterface::redraw ( ViewInterface::Ptr const &  vi, cairo_t *  cr, Scroom::Utils::Rectangle< double >  presentationArea, int  zoom  )

pure virtual

Draw the requested ara at the requested zoom level

Parameters

vi	The ViewInterface on whose behalf the request is made
cr	The context to draw the area on
presentationArea	the area that is to be drawn. The given x and y coordinates should map on 0,0 of the given context cr.
zoom	The requested zoom level. One pixel of your presentation should have size 2**zoom when drawn. zoom may be negative.

Implemented in TransformPresentation, TransparentOverlayPresentation, ExamplePresentation, anonymous_namespace{determine-size-test.cc}::PresentationInterfaceStub, DummyPresentation, and anonymous_namespace{tiledbitmappresentation.cc}::TiledBitmapPresentation.

---

The documentation for this class was generated from the following file:

• inc/scroom/presentationinterface.hh
