#include <viewinterface.hh>

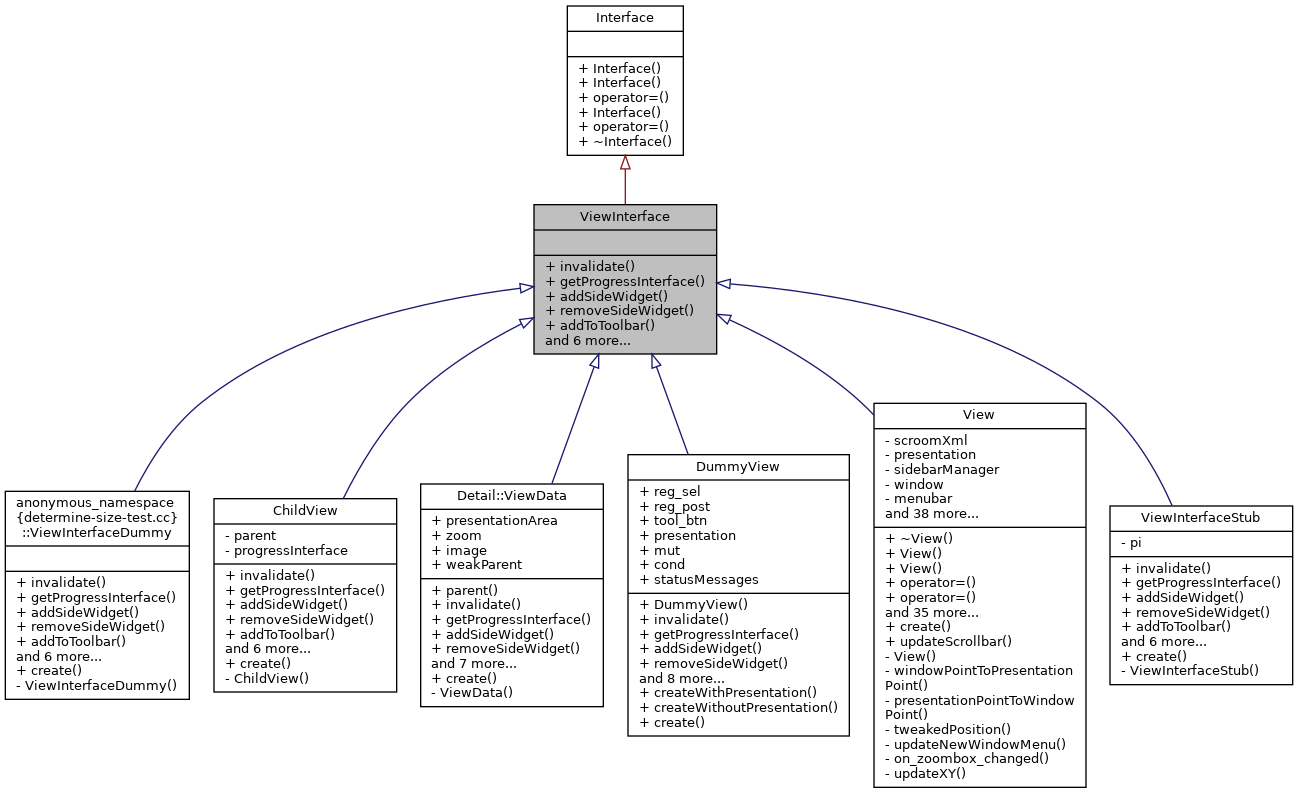

Inheritance diagram for ViewInterface:

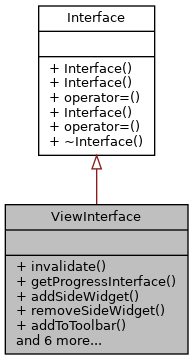

Collaboration diagram for ViewInterface:

Public Types
using	Ptr = boost::shared_ptr< ViewInterface >

using	WeakPtr = boost::weak_ptr< ViewInterface >

Public Member Functions
virtual void	invalidate ()=0

virtual ProgressInterface::Ptr	getProgressInterface ()=0

virtual void	addSideWidget (std::string title, GtkWidget *w)=0

virtual void	removeSideWidget (GtkWidget *w)=0

virtual void	addToToolbar (GtkToolItem *ti)=0

virtual void	removeFromToolbar (GtkToolItem *ti)=0

virtual void	registerSelectionListener (SelectionListener::Ptr)=0

virtual void	registerPostRenderer (PostRenderer::Ptr)=0

virtual void	setStatusMessage (const std::string &)=0

virtual boost::shared_ptr< PresentationInterface >	getCurrentPresentation ()=0

virtual void	addToolButton (GtkToggleButton *, ToolStateListener::Ptr)=0

Additional Inherited Members
Private Member Functions inherited from Interface
	Interface ()=default

	Interface (const Interface &)=delete

Interface &	operator= (const Interface &)=delete

	Interface (const Interface &&)=delete

Interface &	operator= (const Interface &&)=delete

virtual	~Interface ()=default

Detailed Description

Interface provided to something Viewable

Internally, scroom uses a View to represent the fact that something (typically a presentation) is visible on the screen. Being a presentation, you typically want to influence whatever is being shown. This interface allows you to do so.

See also: PresentationInterface, Viewable, SelectionListener, PostRenderer, ToolStateListener

Member Typedef Documentation

◆ Ptr

using ViewInterface::Ptr = boost::shared_ptr<ViewInterface>

◆ WeakPtr

using ViewInterface::WeakPtr = boost::weak_ptr<ViewInterface>

Member Function Documentation

◆ addSideWidget()

virtual void ViewInterface::addSideWidget	(	std::string	title,
		GtkWidget *	w
	)

pure virtual

Request that the given widget be added to the sidebar.

Precondition: Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implemented in anonymous_namespace{determine-size-test.cc}::ViewInterfaceDummy, DummyView, ViewInterfaceStub, View, Detail::ViewData, and ChildView.

◆ addToolButton()

virtual void ViewInterface::addToolButton	(	GtkToggleButton *	,
		ToolStateListener::Ptr
	)

pure virtual

Adds a new tool button to the toolbar. The given ToolStateListener will be informed when the tool is turned on or off. Only one tool will be active at the same time.

See also: ToolStateListener

Implemented in ChildView, Detail::ViewData, View, anonymous_namespace{determine-size-test.cc}::ViewInterfaceDummy, DummyView, and ViewInterfaceStub.

◆ addToToolbar()

virtual void ViewInterface::addToToolbar ( GtkToolItem * ti )

pure virtual

Request that the given tool item be added to the toolbar.

Precondition: Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implemented in View, Detail::ViewData, ChildView, anonymous_namespace{determine-size-test.cc}::ViewInterfaceDummy, DummyView, and ViewInterfaceStub.

◆ getCurrentPresentation()

virtual boost::shared_ptr<PresentationInterface> ViewInterface::getCurrentPresentation ( )

pure virtual

Returns a shared pointer to the current presentation.

See also: PresentationInterface

Implemented in View, anonymous_namespace{determine-size-test.cc}::ViewInterfaceDummy, DummyView, Detail::ViewData, ViewInterfaceStub, and ChildView.

◆ getProgressInterface()

virtual ProgressInterface::Ptr ViewInterface::getProgressInterface ( )

pure virtual

Return a pointer to the progess interface associated with the View

Note: The progress bar should only be manipulated from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implemented in View, anonymous_namespace{determine-size-test.cc}::ViewInterfaceDummy, DummyView, Detail::ViewData, ViewInterfaceStub, and ChildView.

◆ invalidate()

virtual void ViewInterface::invalidate ( )

pure virtual

Request that the window content is redrawn.

Precondition: Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implemented in View, anonymous_namespace{determine-size-test.cc}::ViewInterfaceDummy, DummyView, Detail::ViewData, ViewInterfaceStub, and ChildView.

◆ registerPostRenderer()

virtual void ViewInterface::registerPostRenderer ( PostRenderer::Ptr )

pure virtual

Register a postrenderer to be updated whenever a redraw occurs. When this happens, the 'render' function gets called on the instance that is passed to the given instance.

Note that the order in which different registered instances get updated is the order in which they register to the view. This order remains constant throughout the view's lifetime.

See also: PostRenderer

Implemented in anonymous_namespace{determine-size-test.cc}::ViewInterfaceDummy, DummyView, ViewInterfaceStub, View, ChildView, and Detail::ViewData.

◆ registerSelectionListener()

virtual void ViewInterface::registerSelectionListener ( SelectionListener::Ptr )

pure virtual

Register a SelectionListener to be updated whenever the user selects a region . When the user changes the selection, various functions on the given instance are called.
