ChildView Class Reference

#include <transparentoverlayviewinfo.hh>

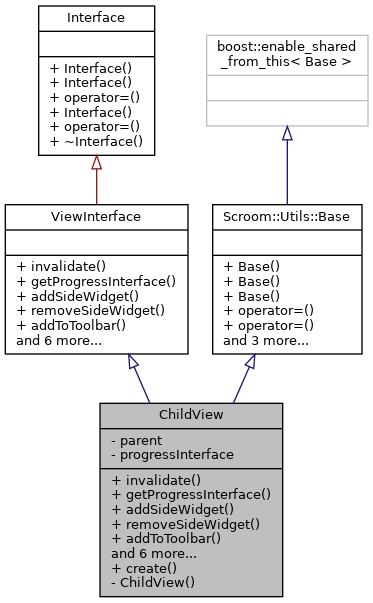

Inheritance diagram for ChildView:

Collaboration diagram for ChildView:

Public Types
using	Ptr = boost::shared_ptr< ChildView >
Public Types inherited from ViewInterface
using	Ptr = boost::shared_ptr< ViewInterface >
using	WeakPtr = boost::weak_ptr< ViewInterface >

Public Member Functions
void	invalidate () override
ProgressInterface::Ptr	getProgressInterface () override
void	addSideWidget (std::string title, GtkWidget *w) override
void	removeSideWidget (GtkWidget *w) override
void	addToToolbar (GtkToolItem *ti) override
void	removeFromToolbar (GtkToolItem *ti) override
void	registerSelectionListener (SelectionListener::Ptr listener) override
void	registerPostRenderer (PostRenderer::Ptr renderer) override
void	setStatusMessage (const std::string &message) override
PresentationInterface::Ptr	getCurrentPresentation () override
void	addToolButton (GtkToggleButton *name, ToolStateListener::Ptr callback) override
Public Member Functions inherited from Scroom::Utils::Base
	Base ()=default
	Base (const Base &)=delete
	Base (Base &&)=delete
Base &	operator= (const Base &)=delete
Base &	operator= (Base &&)=delete
virtual	~Base ()=default
template<typename R >
boost::shared_ptr< R >	shared_from_this ()
template<typename R >
boost::shared_ptr< R const >	shared_from_this () const

Static Public Member Functions
static Ptr	create (boost::shared_ptr< TransparentOverlayViewInfo > const &parent)

Private Member Functions
	ChildView (boost::shared_ptr< TransparentOverlayViewInfo > parent)

Private Attributes
boost::shared_ptr< TransparentOverlayViewInfo >	parent
ProgressInterface::Ptr	progressInterface

Member Typedef Documentation

Ptr

using ChildView::Ptr = boost::shared_ptr<ChildView>

Constructor & Destructor Documentation

ChildView()

ChildView::ChildView ( boost::shared_ptr< TransparentOverlayViewInfo >  parent )

explicitprivate

  : parent(std::move(parent_))
  , progressInterface(parent->getProgressInterface())
{
}

Referenced by create().

Here is the caller graph for this function:

Member Function Documentation

addSideWidget()

void ChildView::addSideWidget ( std::string  title, GtkWidget *  w  )

overridevirtual

Request that the given widget be added to the sidebar.

Precondition

Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implements ViewInterface.

{}

addToolButton()

void ChildView::addToolButton ( GtkToggleButton *  , ToolStateListener::Ptr    )

overridevirtual

Adds a new tool button to the toolbar. The given ToolStateListener will be informed when the tool is turned on or off. Only one tool will be active at the same time.

See also

ToolStateListener

Implements ViewInterface.

{}

addToToolbar()

void ChildView::addToToolbar ( GtkToolItem *  ti )

overridevirtual

Request that the given tool item be added to the toolbar.

Precondition

Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implements ViewInterface.

{}

create()

ChildView::Ptr ChildView::create ( boost::shared_ptr< TransparentOverlayViewInfo > const &  parent )

static

{ return Ptr(new ChildView(parent)); }

Referenced by TransparentOverlayViewInfo::addChild().

Here is the call graph for this function:

Here is the caller graph for this function:

getCurrentPresentation()

PresentationInterface::Ptr ChildView::getCurrentPresentation ( )

overridevirtual

Returns a shared pointer to the current presentation.

See also

PresentationInterface

Implements ViewInterface.

{ return parent->getChild(shared_from_this<ChildView>()); }

getProgressInterface()

ProgressInterface::Ptr ChildView::getProgressInterface ( )

overridevirtual

Return a pointer to the progess interface associated with the View

Note

The progress bar should only be manipulated from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implements ViewInterface.

{ return progressInterface; }

invalidate()

void ChildView::invalidate ( )

overridevirtual

Request that the window content is redrawn.

Precondition

Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implements ViewInterface.

{ parent->invalidate(); }

registerPostRenderer()

void ChildView::registerPostRenderer ( PostRenderer::Ptr  )

overridevirtual

Register a postrenderer to be updated whenever a redraw occurs. When this happens, the 'render' function gets called on the instance that is passed to the given instance.

Note that the order in which different registered instances get updated is the order in which they register to the view. This order remains constant throughout the view's lifetime.

See also

PostRenderer

Implements ViewInterface.

{}

registerSelectionListener()

void ChildView::registerSelectionListener ( SelectionListener::Ptr  )

overridevirtual

Register a SelectionListener to be updated whenever the user selects a region . When the user changes the selection, various functions on the given instance are called.

See also

SelectionListener

Implements ViewInterface.

{}

removeFromToolbar()

void ChildView::removeFromToolbar ( GtkToolItem *  ti )

overridevirtual

Request that the given tool item be removed from the toolbar.

Precondition

Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implements ViewInterface.

{}

removeSideWidget()

void ChildView::removeSideWidget ( GtkWidget *  w )

overridevirtual

Request that the given widget be removed from the sidebar.

Precondition

Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implements ViewInterface.

{}

setStatusMessage()

void ChildView::setStatusMessage ( const std::string &  )

overridevirtual

Sets the status message in the status bar of the application.

Implements ViewInterface.

{}

Member Data Documentation

parent

boost::shared_ptr<TransparentOverlayViewInfo> ChildView::parent

private

Referenced by create(), getCurrentPresentation(), and invalidate().

progressInterface

ProgressInterface::Ptr ChildView::progressInterface

private

Referenced by getProgressInterface().

---

The documentation for this class was generated from the following files:

• plugins/transparent-overlay/src/transparentoverlayviewinfo.hh
• plugins/transparent-overlay/src/transparentoverlayviewinfo.cc
