DummyView Class Reference

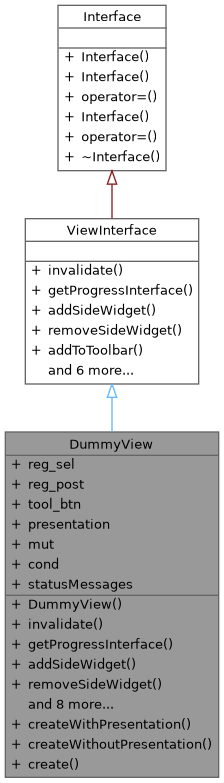

Inheritance diagram for DummyView:

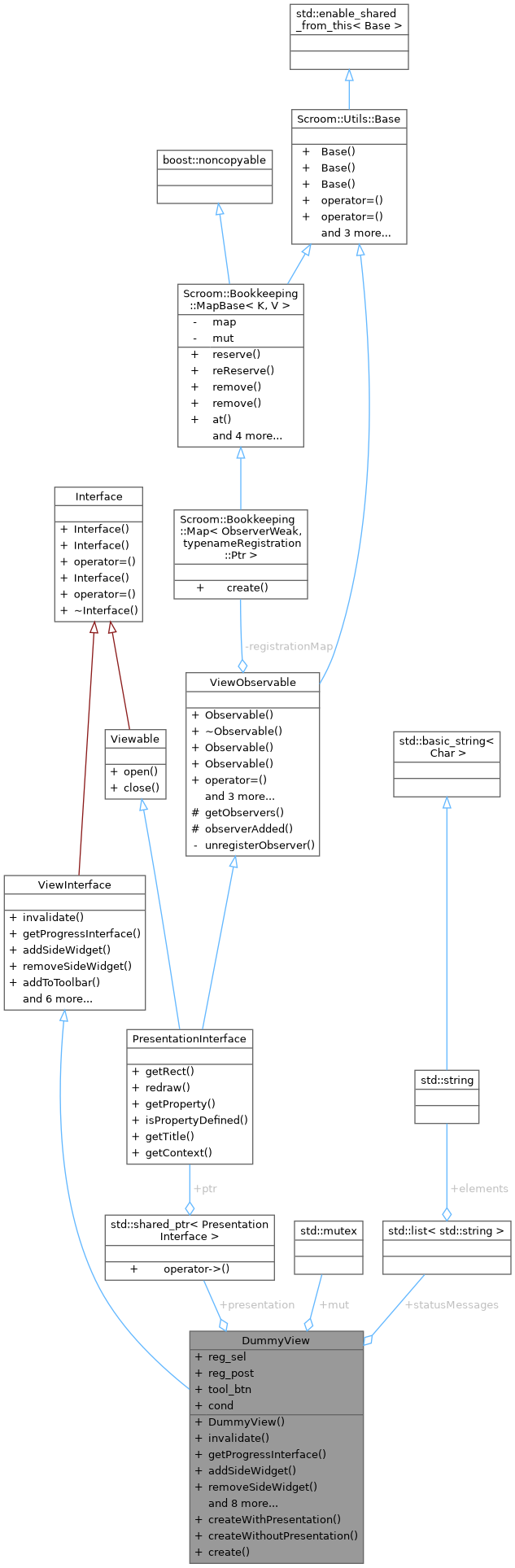

Collaboration diagram for DummyView:

Public Types
using	Ptr = std::shared_ptr< DummyView >
Public Types inherited from ViewInterface
using	Ptr = std::shared_ptr< ViewInterface >
using	WeakPtr = std::weak_ptr< ViewInterface >

Public Member Functions
	DummyView (PresentationInterface::Ptr presentation_)
void	invalidate () override
ProgressInterface::Ptr	getProgressInterface () override
void	addSideWidget (std::string, GtkWidget *) override
void	removeSideWidget (GtkWidget *) override
void	addToToolbar (GtkToolItem *) override
void	removeFromToolbar (GtkToolItem *) override
void	registerSelectionListener (SelectionListener::Ptr) override
void	registerPostRenderer (PostRenderer::Ptr) override
void	setStatusMessage (const std::string &msg) override
PresentationInterface::Ptr	getCurrentPresentation () override
void	addToolButton (GtkToggleButton *, ToolStateListener::Ptr) override
std::string	nextStatusMessage ()

Static Public Member Functions
static Ptr	createWithPresentation ()
static Ptr	createWithoutPresentation ()
static Ptr	create (PresentationInterface::Ptr presentation_)

Public Attributes
int	reg_sel = 0
int	reg_post = 0
int	tool_btn = 0
PresentationInterface::Ptr	presentation
std::mutex	mut
std::condition_variable	cond
std::list< std::string >	statusMessages

Member Typedef Documentation

Ptr

using DummyView::Ptr = std::shared_ptr<DummyView>

Constructor & Destructor Documentation

DummyView()

DummyView::DummyView ( PresentationInterface::Ptr  presentation_ )

inlineexplicit

    : presentation(std::move(presentation_))
  {
  }

Member Function Documentation

addSideWidget()

void DummyView::addSideWidget ( std::string  title, GtkWidget *  w  )

inlineoverridevirtual

Request that the given widget be added to the sidebar.

Precondition

Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implements ViewInterface.

{}

addToolButton()

void DummyView::addToolButton ( GtkToggleButton *  , ToolStateListener::Ptr    )

inlineoverridevirtual

Adds a new tool button to the toolbar. The given ToolStateListener will be informed when the tool is turned on or off. Only one tool will be active at the same time.

See also

ToolStateListener

Implements ViewInterface.

{ tool_btn++; }

addToToolbar()

void DummyView::addToToolbar ( GtkToolItem *  ti )

inlineoverridevirtual

Request that the given tool item be added to the toolbar.

Precondition

Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implements ViewInterface.

{}

create()

static Ptr DummyView::create ( PresentationInterface::Ptr  presentation_ )

inlinestatic

{ return std::make_shared<DummyView>(std::move(presentation_)); }

Referenced by createWithoutPresentation(), and createWithPresentation().

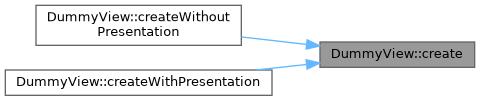

Here is the caller graph for this function:

createWithoutPresentation()

static Ptr DummyView::createWithoutPresentation ( )

inlinestatic

{ return create(nullptr); }

Here is the call graph for this function:

createWithPresentation()

static Ptr DummyView::createWithPresentation ( )

inlinestatic

{ return create(DummyPresentation::create()); }

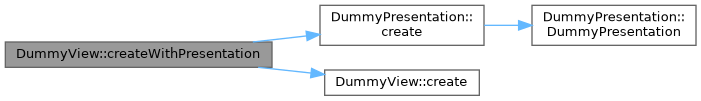

Here is the call graph for this function:

getCurrentPresentation()

PresentationInterface::Ptr DummyView::getCurrentPresentation ( )

inlineoverridevirtual

Returns a shared pointer to the current presentation.

See also

PresentationInterface

Implements ViewInterface.

{ return presentation; }

getProgressInterface()

ProgressInterface::Ptr DummyView::getProgressInterface ( )

inlineoverridevirtual

Return a pointer to the progess interface associated with the View

Note

The progress bar should only be manipulated from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implements ViewInterface.

{ return nullptr; }

invalidate()

void DummyView::invalidate ( )

inlineoverridevirtual

Request that the window content is redrawn.

Precondition

Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implements ViewInterface.

{}

nextStatusMessage()

std::string DummyView::nextStatusMessage ( )

inline

  {
    std::unique_lock<std::mutex> l(mut);
    if(!cond.wait_for(l, std::chrono::milliseconds(500), [&] { return !statusMessages.empty(); }))
    {
      ADD_FAILURE() << "Timeout waiting for status message";
      return {};
    }
    auto result = statusMessages.front();
    statusMessages.pop_front();
    return result;
  }

registerPostRenderer()

void DummyView::registerPostRenderer ( PostRenderer::Ptr  )

inlineoverridevirtual

Register a postrenderer to be updated whenever a redraw occurs. When this happens, the 'render' function gets called on the instance that is passed to the given instance.

Note that the order in which different registered instances get updated is the order in which they register to the view. This order remains constant throughout the view's lifetime.

See also

PostRenderer

Implements ViewInterface.

{ reg_post++; }

registerSelectionListener()

void DummyView::registerSelectionListener ( SelectionListener::Ptr  )

inlineoverridevirtual

Register a SelectionListener to be updated whenever the user selects a region . When the user changes the selection, various functions on the given instance are called.

See also

SelectionListener

Implements ViewInterface.

{ reg_sel++; }

removeFromToolbar()

void DummyView::removeFromToolbar ( GtkToolItem *  ti )

inlineoverridevirtual

Request that the given tool item be removed from the toolbar.

Precondition

Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implements ViewInterface.

{}

removeSideWidget()

void DummyView::removeSideWidget ( GtkWidget *  w )

inlineoverridevirtual

Request that the given widget be removed from the sidebar.

Precondition

Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implements ViewInterface.

{}

setStatusMessage()

void DummyView::setStatusMessage ( const std::string &  )

inlineoverridevirtual

Sets the status message in the status bar of the application.

Implements ViewInterface.

  {
    std::unique_lock<std::mutex> const l(mut);
    statusMessages.push_back(msg);
    cond.notify_all();
  }

Member Data Documentation

cond

std::condition_variable DummyView::cond

Referenced by nextStatusMessage(), and setStatusMessage().

mut

std::mutex DummyView::mut

Referenced by nextStatusMessage(), and setStatusMessage().

presentation

PresentationInterface::Ptr DummyView::presentation

Referenced by getCurrentPresentation().

reg_post

int DummyView::reg_post = 0

Referenced by registerPostRenderer().

reg_sel

int DummyView::reg_sel = 0

Referenced by registerSelectionListener().

statusMessages

std::list<std::string> DummyView::statusMessages

Referenced by nextStatusMessage(), and setStatusMessage().

tool_btn

int DummyView::tool_btn = 0

Referenced by addToolButton().

---

The documentation for this class was generated from the following file:

• plugins/pipette/test/pipette-tests.cc
