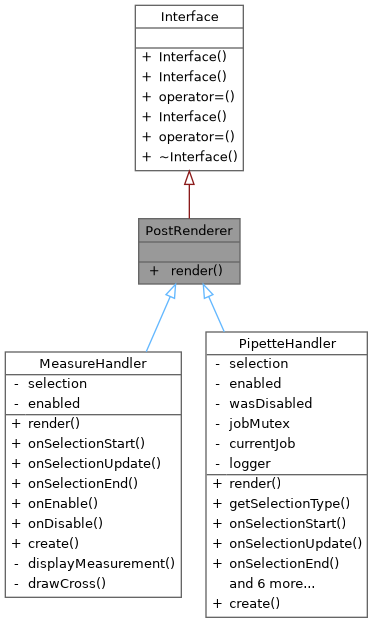

Inheritance diagram for PostRenderer:

Collaboration diagram for PostRenderer:

Public Types
using	Ptr = std::shared_ptr< PostRenderer >

Public Member Functions
virtual void	render (std::shared_ptr< ViewInterface > const &vi, cairo_t *cr, Scroom::Utils::Rectangle< double > presentationArea, int zoom)=0

Additional Inherited Members
Private Member Functions inherited from Interface
	Interface ()=default

	Interface (const Interface &)=delete

Interface &	operator= (const Interface &)=delete

	Interface (Interface &&)=delete

Interface &	operator= (Interface &&)=delete

virtual	~Interface ()=default

Detailed Description

Interface provided to something that wants to draw on top of the current presentation.

Member Typedef Documentation

virtual void PostRenderer::render	(	std::shared_ptr< ViewInterface > const &	vi,
		cairo_t *	cr,
		Scroom::Utils::Rectangle< double >	presentationArea,
		int	zoom
	)

pure virtual

This function is called after the presentation finishes redrawing.

Parameters

vi	The ViewInterface on whose behalf the request is made
cr	The context to with, the origin of the context is translated to be the same as the origin of the presentation.
presentationArea	the area that is to be drawn. The given `x` and `y` coordinates should map on 0,0 of the given context `cr`.
zoom	The requested zoom level. One pixel should have size 2**`zoom` when drawn. `zoom` may be negative.

The documentation for this class was generated from the following file:
