ProgressInterface Class Reference

#include <progressinterface.hh>

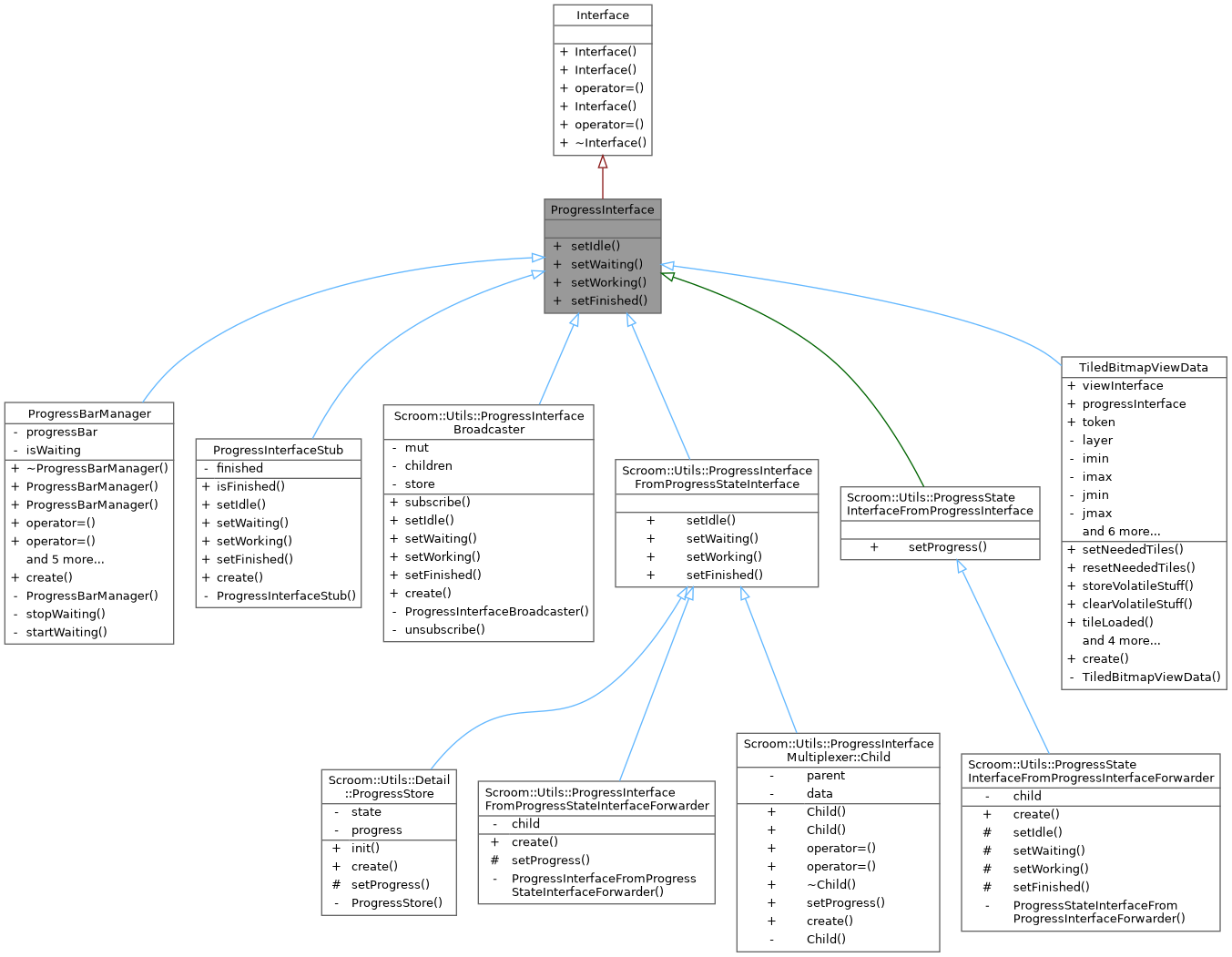

Inheritance diagram for ProgressInterface:

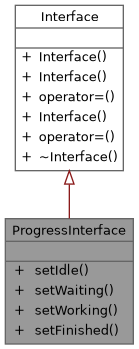

Collaboration diagram for ProgressInterface:

Public Types
using	Ptr = std::shared_ptr< ProgressInterface >
using	WeakPtr = std::weak_ptr< ProgressInterface >

Public Member Functions
virtual void	setIdle ()=0
virtual void	setWaiting (double progress=0.0)=0
virtual void	setWorking (double progress)=0
virtual void	setFinished ()=0

Additional Inherited Members
Private Member Functions inherited from Interface
	Interface ()=default
	Interface (const Interface &)=delete
Interface &	operator= (const Interface &)=delete
	Interface (Interface &&)=delete
Interface &	operator= (Interface &&)=delete
virtual	~Interface ()=default

Detailed Description

Interface used for reporting progress information

Member Typedef Documentation

Ptr

using ProgressInterface::Ptr = std::shared_ptr<ProgressInterface>

WeakPtr

using ProgressInterface::WeakPtr = std::weak_ptr<ProgressInterface>

Member Function Documentation

setFinished()

virtual void ProgressInterface::setFinished ( )

pure virtual

Implemented in ProgressBarManager, TiledBitmapViewData, ProgressInterfaceStub, Scroom::Utils::ProgressInterfaceFromProgressStateInterface, Scroom::Utils::ProgressStateInterfaceFromProgressInterfaceForwarder, and Scroom::Utils::ProgressInterfaceBroadcaster.

Referenced by Scroom::Utils::ProgressStateInterfaceFromProgressInterface::setProgress().

Here is the caller graph for this function:

setIdle()

virtual void ProgressInterface::setIdle ( )

pure virtual

Implemented in ProgressBarManager, TiledBitmapViewData, ProgressInterfaceStub, Scroom::Utils::ProgressInterfaceFromProgressStateInterface, Scroom::Utils::ProgressStateInterfaceFromProgressInterfaceForwarder, and Scroom::Utils::ProgressInterfaceBroadcaster.

Referenced by Scroom::Utils::ProgressStateInterfaceFromProgressInterface::setProgress().

Here is the caller graph for this function:

setWaiting()

virtual void ProgressInterface::setWaiting ( double  progress = 0.0 )

pure virtual

Implemented in ProgressBarManager, TiledBitmapViewData, Scroom::Utils::ProgressInterfaceFromProgressStateInterface, Scroom::Utils::ProgressStateInterfaceFromProgressInterfaceForwarder, Scroom::Utils::ProgressInterfaceBroadcaster, and ProgressInterfaceStub.

setWorking()

virtual void ProgressInterface::setWorking ( double  progress )

pure virtual

Implemented in ProgressBarManager, TiledBitmapViewData, Scroom::Utils::ProgressInterfaceFromProgressStateInterface, Scroom::Utils::ProgressStateInterfaceFromProgressInterfaceForwarder, Scroom::Utils::ProgressInterfaceBroadcaster, and ProgressInterfaceStub.

Referenced by Scroom::Utils::ProgressStateInterfaceFromProgressInterface::setProgress().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• libs/util/inc/scroom/progressinterface.hh
