Scroom::Utils::ProgressInterfaceMultiplexer::Child Class Reference

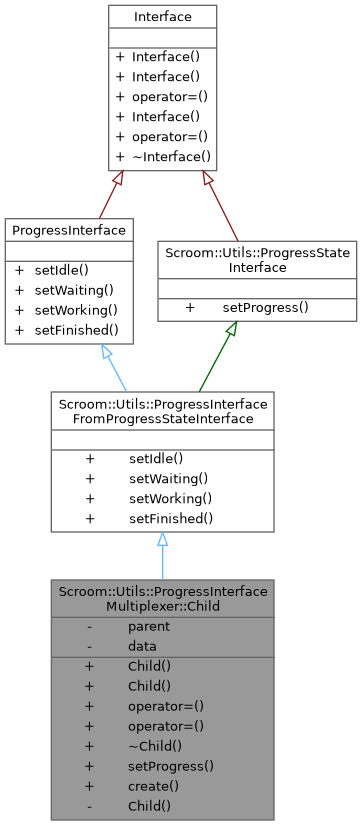

Inheritance diagram for Scroom::Utils::ProgressInterfaceMultiplexer::Child:

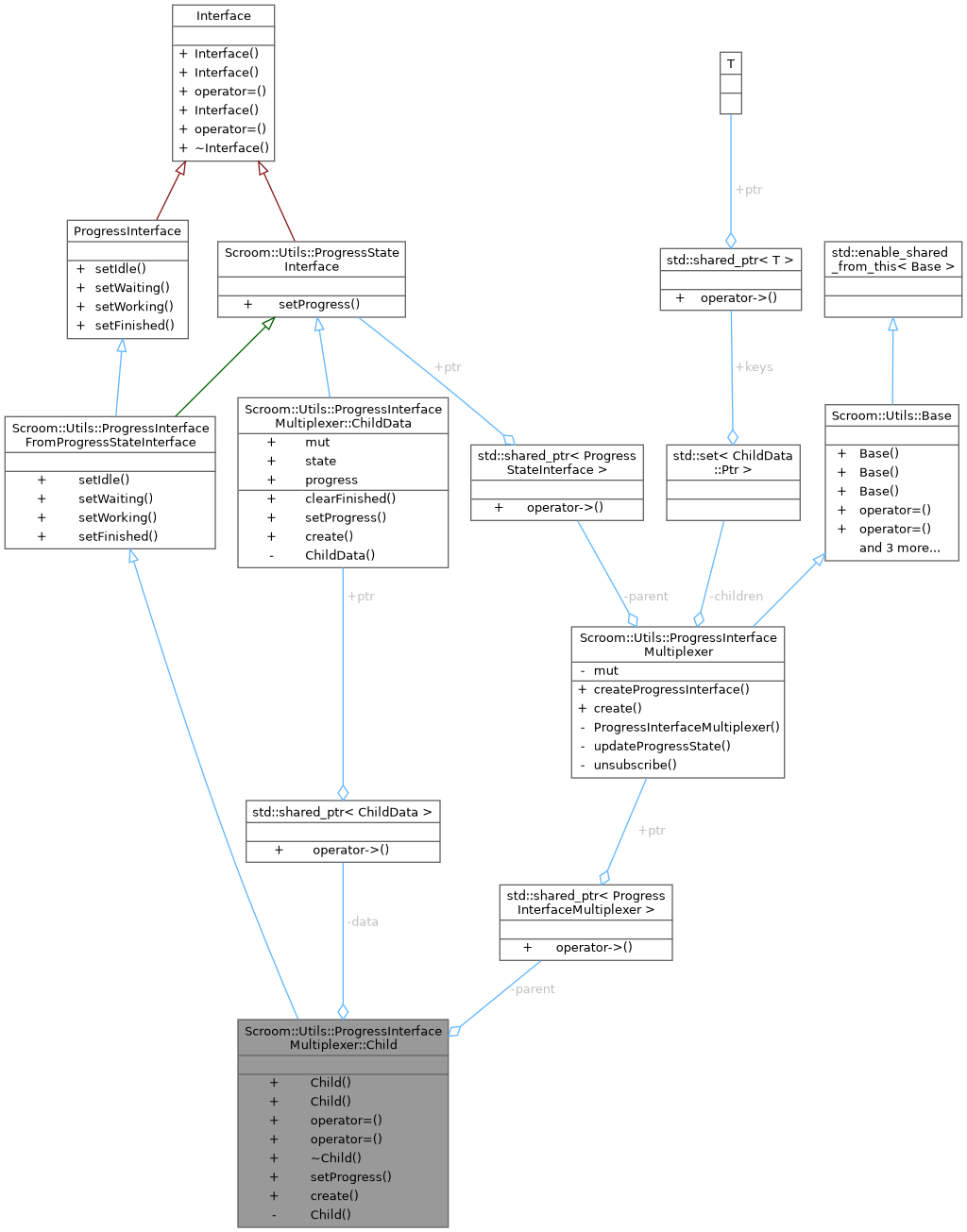

Collaboration diagram for Scroom::Utils::ProgressInterfaceMultiplexer::Child:

Public Types
using	Ptr = std::shared_ptr< Child >
Public Types inherited from ProgressInterface
using	Ptr = std::shared_ptr< ProgressInterface >
using	WeakPtr = std::weak_ptr< ProgressInterface >

Public Member Functions
	Child (const Child &)=delete
	Child (Child &&)=delete
Child &	operator= (const Child &)=delete
Child &	operator= (Child &&)=delete
	~Child () override
void	setProgress (State s, double progress=0.0) override
Public Member Functions inherited from Scroom::Utils::ProgressInterfaceFromProgressStateInterface
void	setIdle () override
void	setWaiting (double progress=0.0) override
void	setWorking (double progress) override
void	setFinished () override

Static Public Member Functions
static Ptr	create (ProgressInterfaceMultiplexer::Ptr parent, ChildData::Ptr data)

Private Member Functions
	Child (ProgressInterfaceMultiplexer::Ptr parent, ChildData::Ptr data)

Private Attributes
ProgressInterfaceMultiplexer::Ptr	parent
ChildData::Ptr	data

Additional Inherited Members
Protected Types inherited from Scroom::Utils::ProgressStateInterface
enum	State { IDLE , WAITING , WORKING , FINISHED }
using	Ptr = std::shared_ptr< ProgressStateInterface >
using	WeakPtr = std::weak_ptr< ProgressStateInterface >

Member Typedef Documentation

Ptr

using Scroom::Utils::ProgressInterfaceMultiplexer::Child::Ptr = std::shared_ptr<Child>

Constructor & Destructor Documentation

Child() [1/3]

Scroom::Utils::ProgressInterfaceMultiplexer::Child::Child ( ProgressInterfaceMultiplexer::Ptr  parent, ChildData::Ptr  data  )

private

    : parent(std::move(parent_))
    , data(std::move(data_))
  {
  }

Child() [2/3]

Scroom::Utils::ProgressInterfaceMultiplexer::Child::Child ( const Child &  )

delete

Child() [3/3]

Scroom::Utils::ProgressInterfaceMultiplexer::Child::Child ( Child &&  )

delete

~Child()

Scroom::Utils::ProgressInterfaceMultiplexer::Child::~Child ( )

override

  {
    parent->unsubscribe(data);
    parent->updateProgressState();
  }

Member Function Documentation

create()

ProgressInterfaceMultiplexer::Child::Ptr Scroom::Utils::ProgressInterfaceMultiplexer::Child::create ( ProgressInterfaceMultiplexer::Ptr  parent, ChildData::Ptr  data  )

static

  {
    return Ptr(new Child(std::move(parent), std::move(data)));
  }

Referenced by Scroom::Utils::ProgressInterfaceMultiplexer::createProgressInterface().

Here is the caller graph for this function:

operator=() [1/2]

Child & Scroom::Utils::ProgressInterfaceMultiplexer::Child::operator= ( Child &&  )

delete

operator=() [2/2]

Child & Scroom::Utils::ProgressInterfaceMultiplexer::Child::operator= ( const Child &  )

delete

setProgress()

void Scroom::Utils::ProgressInterfaceMultiplexer::Child::setProgress ( State  s, double  progress = 0.0  )

overridevirtual

Implements Scroom::Utils::ProgressStateInterface.

  {
    data->setProgress(state, progress);
    parent->updateProgressState();
  }

Member Data Documentation

data

ChildData::Ptr Scroom::Utils::ProgressInterfaceMultiplexer::Child::data

private

parent

ProgressInterfaceMultiplexer::Ptr Scroom::Utils::ProgressInterfaceMultiplexer::Child::parent

private

---

The documentation for this class was generated from the following files:

• libs/util/inc/scroom/progressinterfacehelpers.hh
• libs/util/src/progressinterfacehelpers.cc
