Scroom::Utils::ProgressStateInterface Class Reference

#include <progressinterfacehelpers.hh>

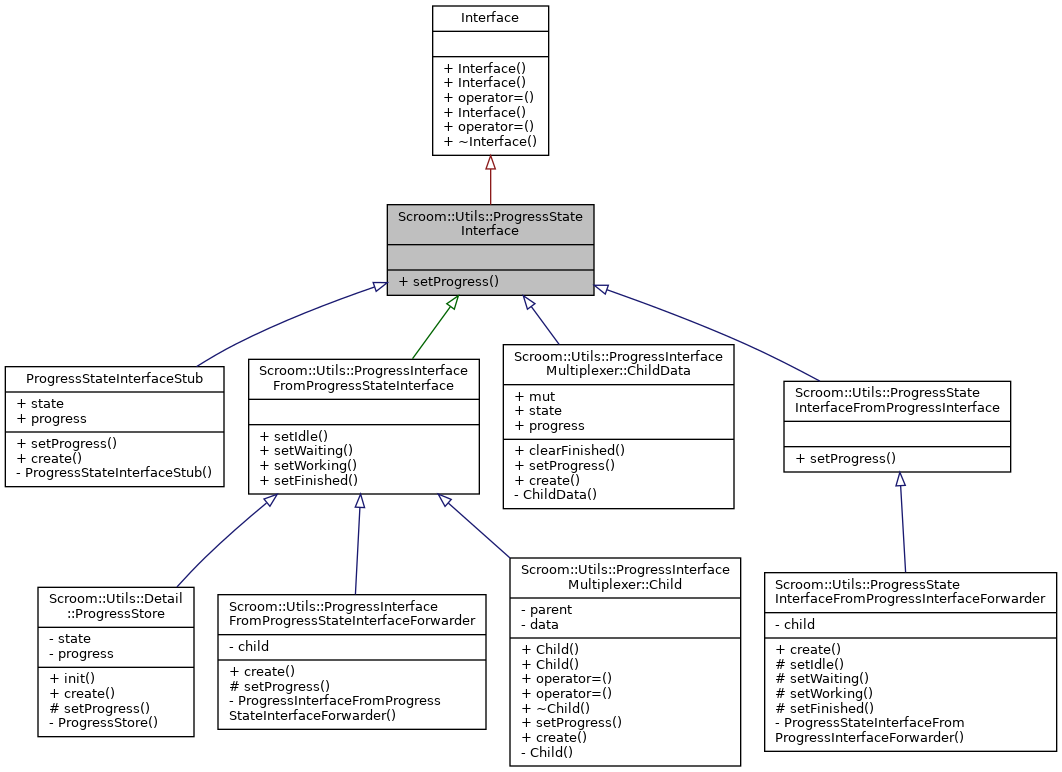

Inheritance diagram for Scroom::Utils::ProgressStateInterface:

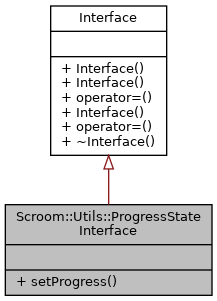

Collaboration diagram for Scroom::Utils::ProgressStateInterface:

Public Types
enum	State { IDLE, WAITING, WORKING, FINISHED }
using	Ptr = boost::shared_ptr< ProgressStateInterface >
using	WeakPtr = boost::weak_ptr< ProgressStateInterface >

Public Member Functions
virtual void	setProgress (State s, double progress=0.0)=0

Additional Inherited Members
Private Member Functions inherited from Interface
	Interface ()=default
	Interface (const Interface &)=delete
Interface &	operator= (const Interface &)=delete
	Interface (const Interface &&)=delete
Interface &	operator= (const Interface &&)=delete
virtual	~Interface ()=default

Detailed Description

Alternative interface used for reporting progress information

Member Typedef Documentation

Ptr

using Scroom::Utils::ProgressStateInterface::Ptr = boost::shared_ptr<ProgressStateInterface>

WeakPtr

using Scroom::Utils::ProgressStateInterface::WeakPtr = boost::weak_ptr<ProgressStateInterface>

Member Enumeration Documentation

State

enum Scroom::Utils::ProgressStateInterface::State

Enumerator
IDLE
WAITING
WORKING
FINISHED

    {
      IDLE,
      WAITING,
      WORKING,
      FINISHED
    };

Member Function Documentation

setProgress()

virtual void Scroom::Utils::ProgressStateInterface::setProgress ( State  s, double  progress = 0.0  )

pure virtual

Implemented in Scroom::Utils::ProgressInterfaceMultiplexer::Child, Scroom::Utils::ProgressInterfaceMultiplexer::ChildData, Scroom::Utils::ProgressStateInterfaceFromProgressInterface, Scroom::Utils::ProgressInterfaceFromProgressStateInterfaceForwarder, and ProgressStateInterfaceStub.

Referenced by Scroom::Utils::ProgressInterfaceFromProgressStateInterface::setFinished(), Scroom::Utils::ProgressInterfaceFromProgressStateInterface::setIdle(), Scroom::Utils::ProgressInterfaceFromProgressStateInterface::setWaiting(), and Scroom::Utils::ProgressInterfaceFromProgressStateInterface::setWorking().

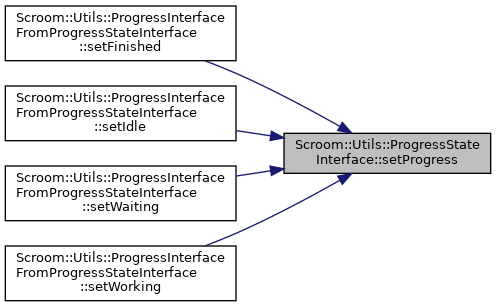

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• inc/scroom/progressinterfacehelpers.hh
