RectangleVerticalTestScaffold Class Reference

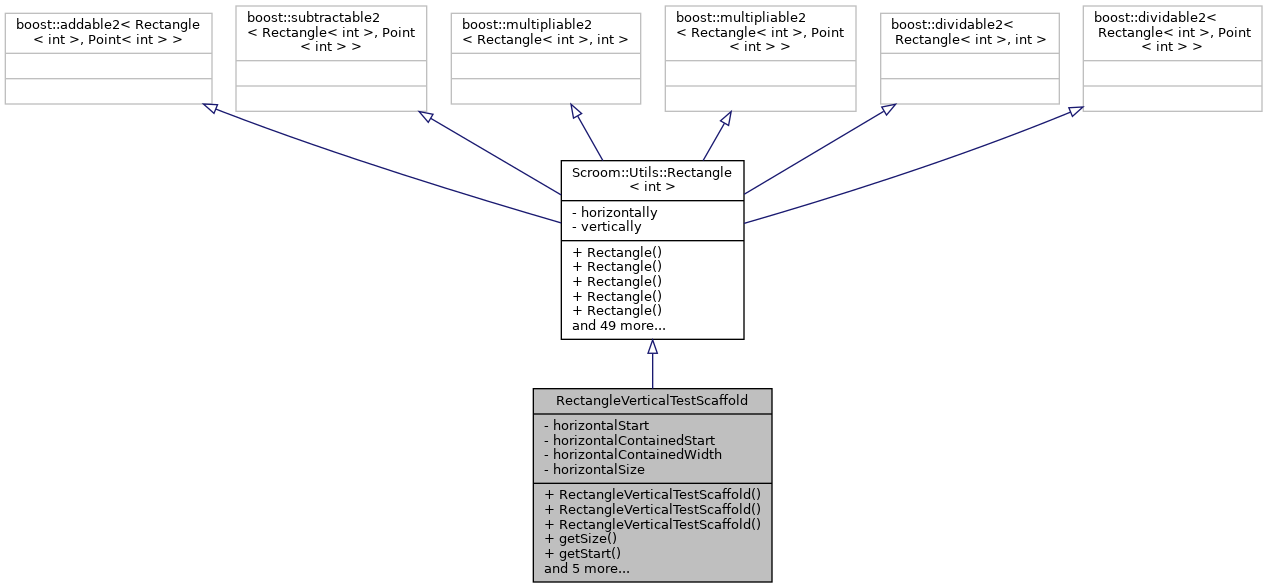

Inheritance diagram for RectangleVerticalTestScaffold:

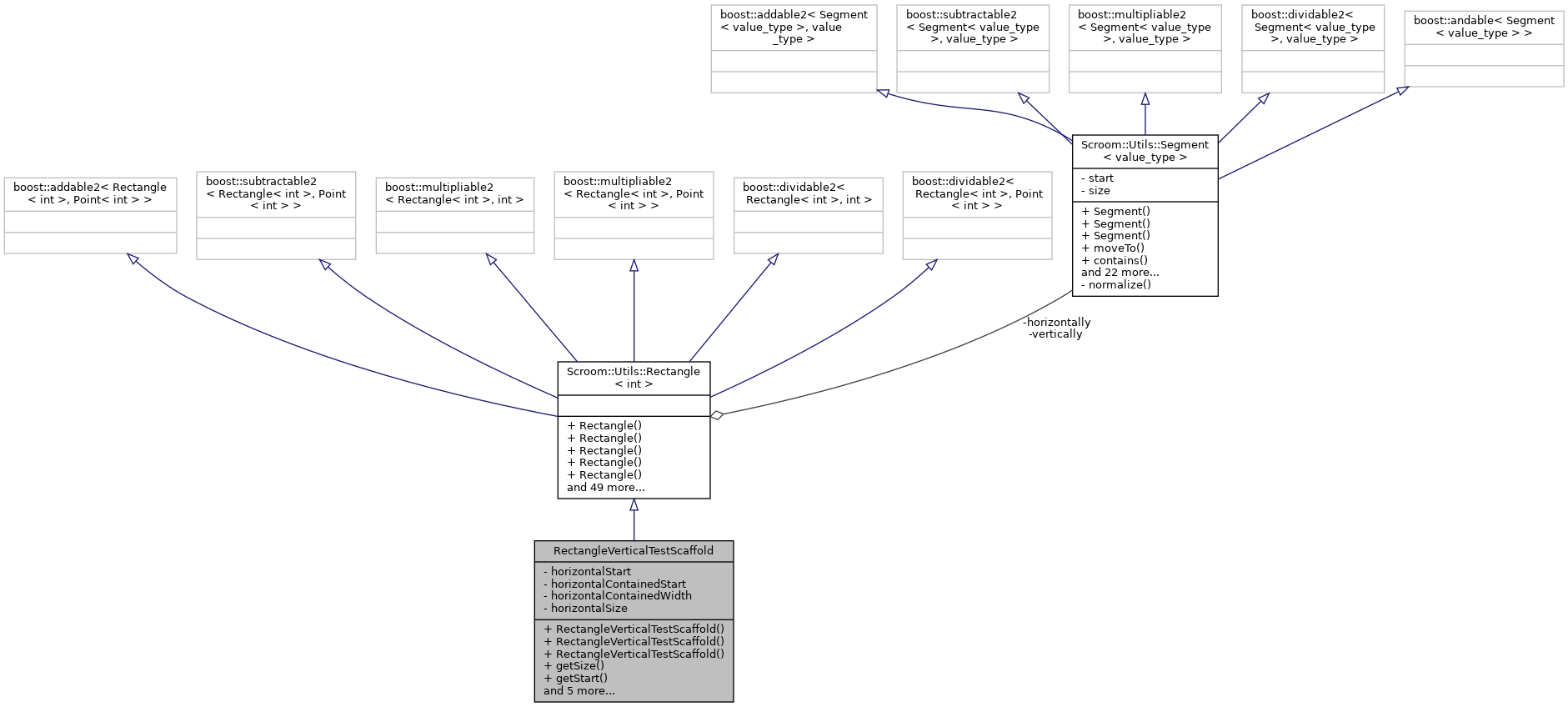

Collaboration diagram for RectangleVerticalTestScaffold:

Public Member Functions
	RectangleVerticalTestScaffold (int verticalStart, int verticalSize)
	RectangleVerticalTestScaffold ()=default
	RectangleVerticalTestScaffold (const Rectangle< int > &r)
int	getSize () const
int	getStart () const
int	getEnd () const
bool	contains (int y) const
bool	contains (const RectangleVerticalTestScaffold &other) const
RectangleVerticalTestScaffold	intersection (const RectangleVerticalTestScaffold &other) const
Rectangle	moveTo (int y)
Public Member Functions inherited from Scroom::Utils::Rectangle< int >
	Rectangle ()=default
	Rectangle (value_type x_, value_type y_, value_type width_, value_type height_)
	Rectangle (const Segment< value_type > &horizontally_, const Segment< value_type > &vertically_)
	Rectangle (const cairo_rectangle_int_t &rect)
	Rectangle (typename std::enable_if<!T_is_int, Rectangle< int > const & >::type rect)
cairo_rectangle_int_t	toGdkRectangle () const
Rectangle	moveTo (xy_type const &other) const
Rectangle	moveTo (value_type const &x, value_type const &y) const
bool	contains (xy_type const &other) const
bool	contains (const Rectangle &other) const
bool	intersects (const Rectangle &other) const
void	reduceSizeToMultipleOf (value_type size)
Rectangle	intersection (const Rectangle &other) const
Rectangle< typename std::common_type< int, U >::type >	intersection (const Rectangle< U > &other) const
value_type	getTop () const
value_type	getLeft () const
value_type	getBottom () const
value_type	getRight () const
void	setTop (value_type v)
void	setLeft (value_type v)
void	setBottom (value_type v)
void	setRight (value_type v)
value_type	getWidth () const
value_type	getHeight () const
value_type	x () const
value_type	y () const
value_type	width () const
value_type	height () const
xy_type	getTopLeft () const
xy_type	getTopRight () const
xy_type	getBottomLeft () const
xy_type	getBottomRight () const
bool	isEmpty () const
Rectangle< value_type >	leftOf (value_type v) const
Rectangle< value_type >	leftOf (Rectangle< value_type > const &r) const
Rectangle< value_type >	rightOf (value_type v) const
Rectangle< value_type >	rightOf (Rectangle< value_type > const &r) const
Rectangle< value_type >	above (value_type v) const
Rectangle< value_type >	above (Rectangle< value_type > const &r) const
Rectangle< value_type >	below (value_type v) const
Rectangle< value_type >	below (Rectangle< value_type > const &r) const
bool	operator== (const Rectangle &other) const
bool	operator!= (const Rectangle &other) const
Rectangle< value_type > &	operator+= (xy_type const &other)
Rectangle< value_type > &	operator-= (xy_type const &other)
Rectangle< value_type > &	operator*= (value_type other)
Rectangle< value_type > &	operator*= (xy_type const &other)
Rectangle< value_type > &	operator/= (value_type other)
Rectangle< value_type > &	operator/= (xy_type const &other)
const Segment< value_type > &	getHorizontally () const
const Segment< value_type > &	getVertically () const
void	setSize (xy_type const &s)
xy_type	getSize () const
Rectangle< U >	to () const

Static Private Attributes
static const int	horizontalStart = -1
static const int	horizontalContainedStart = 0
static const int	horizontalContainedWidth = 1
static const int	horizontalSize = 5

Additional Inherited Members
Public Types inherited from Scroom::Utils::Rectangle< int >
using	value_type = int
using	xy_type = Point< int >

Constructor & Destructor Documentation

RectangleVerticalTestScaffold() [1/3]

RectangleVerticalTestScaffold::RectangleVerticalTestScaffold ( int  verticalStart, int  verticalSize  )

inline

    : Rectangle(horizontalStart, verticalStart, horizontalSize, verticalSize)
  {
  }

RectangleVerticalTestScaffold() [2/3]

RectangleVerticalTestScaffold::RectangleVerticalTestScaffold ( )

default

RectangleVerticalTestScaffold() [3/3]

RectangleVerticalTestScaffold::RectangleVerticalTestScaffold ( const Rectangle< int > &  r )

inline

    : Rectangle(r)
  {
  }

Member Function Documentation

contains() [1/2]

bool RectangleVerticalTestScaffold::contains ( const RectangleVerticalTestScaffold &  other ) const

inline

{ return Rectangle<int>::contains(other); }

contains() [2/2]

bool RectangleVerticalTestScaffold::contains ( int  y ) const

inline

{ return Rectangle::contains(make_point(horizontalContainedStart, y)); }

Here is the call graph for this function:

getEnd()

int RectangleVerticalTestScaffold::getEnd ( ) const

inline

{ return getTop() + getHeight(); }

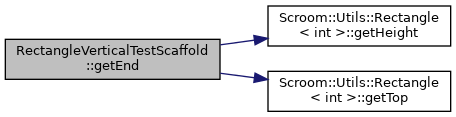

Here is the call graph for this function:

getSize()

int RectangleVerticalTestScaffold::getSize ( ) const

inline

{ return getHeight(); }

Here is the call graph for this function:

getStart()

int RectangleVerticalTestScaffold::getStart ( ) const

inline

{ return getTop(); }

Here is the call graph for this function:

intersection()

RectangleVerticalTestScaffold RectangleVerticalTestScaffold::intersection ( const RectangleVerticalTestScaffold &  other ) const

inline

  {
    return Rectangle<int>::intersection(other);
  }

moveTo()

Rectangle RectangleVerticalTestScaffold::moveTo ( int  y )

inline

{ return Rectangle::moveTo(make_point(horizontalContainedStart, y)); }

Here is the call graph for this function:

Member Data Documentation

horizontalContainedStart

const int RectangleVerticalTestScaffold::horizontalContainedStart = 0

staticprivate

Referenced by contains(), and moveTo().

horizontalContainedWidth

const int RectangleVerticalTestScaffold::horizontalContainedWidth = 1

staticprivate

horizontalSize

const int RectangleVerticalTestScaffold::horizontalSize = 5

staticprivate

horizontalStart

const int RectangleVerticalTestScaffold::horizontalStart = -1

staticprivate

---

The documentation for this class was generated from the following file:

• libs/util/test/rectangletests.cc
