SelectionListener Class Reference

#include <viewinterface.hh>

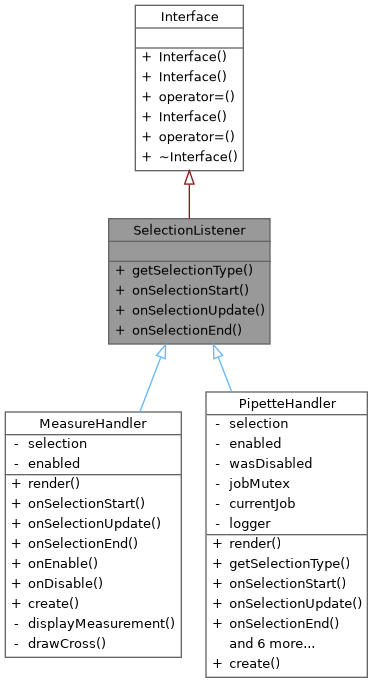

Inheritance diagram for SelectionListener:

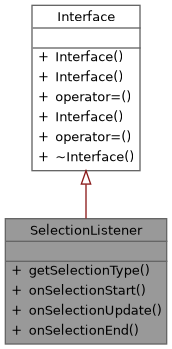

Collaboration diagram for SelectionListener:

Public Types
using	Ptr = std::shared_ptr< SelectionListener >

Public Member Functions
virtual std::string	getSelectionType ()
virtual void	onSelectionStart (Selection selection, std::shared_ptr< ViewInterface > view)=0
virtual void	onSelectionUpdate (Selection selection, std::shared_ptr< ViewInterface > view)=0
virtual void	onSelectionEnd (Selection selection, std::shared_ptr< ViewInterface > view)=0

Additional Inherited Members
Private Member Functions inherited from Interface
	Interface ()=default
	Interface (const Interface &)=delete
Interface &	operator= (const Interface &)=delete
	Interface (Interface &&)=delete
Interface &	operator= (Interface &&)=delete
virtual	~Interface ()=default

Detailed Description

Interface provided to something that wants to be notified of selection updates.

Whenever the user selection changes, the appropriate functions are called with either the starting point or the full selection as argument.

See also

Selection

Member Typedef Documentation

Ptr

using SelectionListener::Ptr = std::shared_ptr<SelectionListener>

Member Function Documentation

getSelectionType()

virtual std::string SelectionListener::getSelectionType ( )

inlinevirtual

Reimplemented in PipetteHandler.

{ return SelectionType::DEFAULT; }

Here is the call graph for this function:

onSelectionEnd()

virtual void SelectionListener::onSelectionEnd ( Selection  selection, std::shared_ptr< ViewInterface >  view  )

pure virtual

This function is called whenever the selection ends. That is, whenever the user releases the mouse button that was pressed.

The final selection is passed as an argument.

See also

Selection

Implemented in MeasureHandler, and PipetteHandler.

onSelectionStart()

virtual void SelectionListener::onSelectionStart ( Selection  selection, std::shared_ptr< ViewInterface >  view  )

pure virtual

This function is called whenever the user clicks a view. The point that is clicked is passed as an argument.

The passed point is a point in the presentation coordinate space.

Implemented in MeasureHandler, and PipetteHandler.

onSelectionUpdate()

virtual void SelectionListener::onSelectionUpdate ( Selection  selection, std::shared_ptr< ViewInterface >  view  )

pure virtual

This function is called whenever the selection updates. That is, whenever the user moves the mouse while keeping the mouse button pressed.

The updated selection is passed as an argument.

See also

Selection

Implemented in MeasureHandler, and PipetteHandler.

---

The documentation for this class was generated from the following file:

• libs/plugin-interfaces/inc/scroom/viewinterface.hh
