DummyPresentation Class Reference

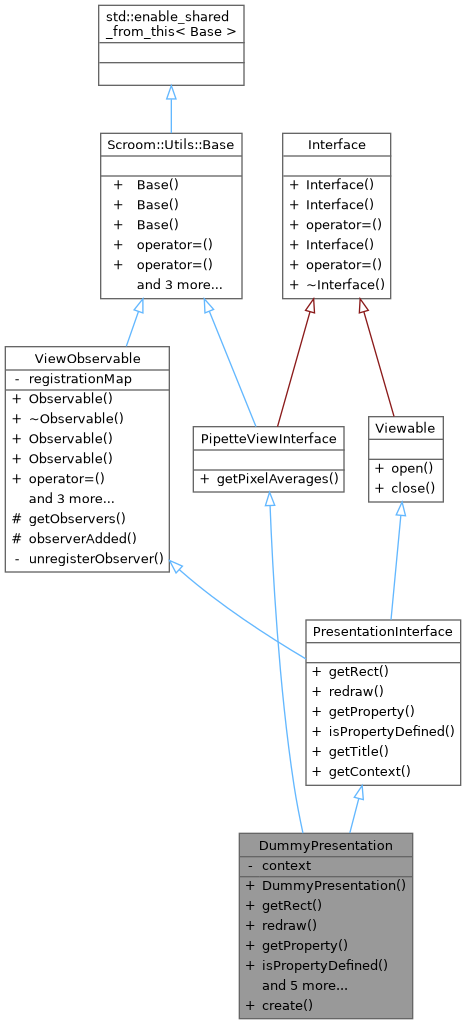

Inheritance diagram for DummyPresentation:

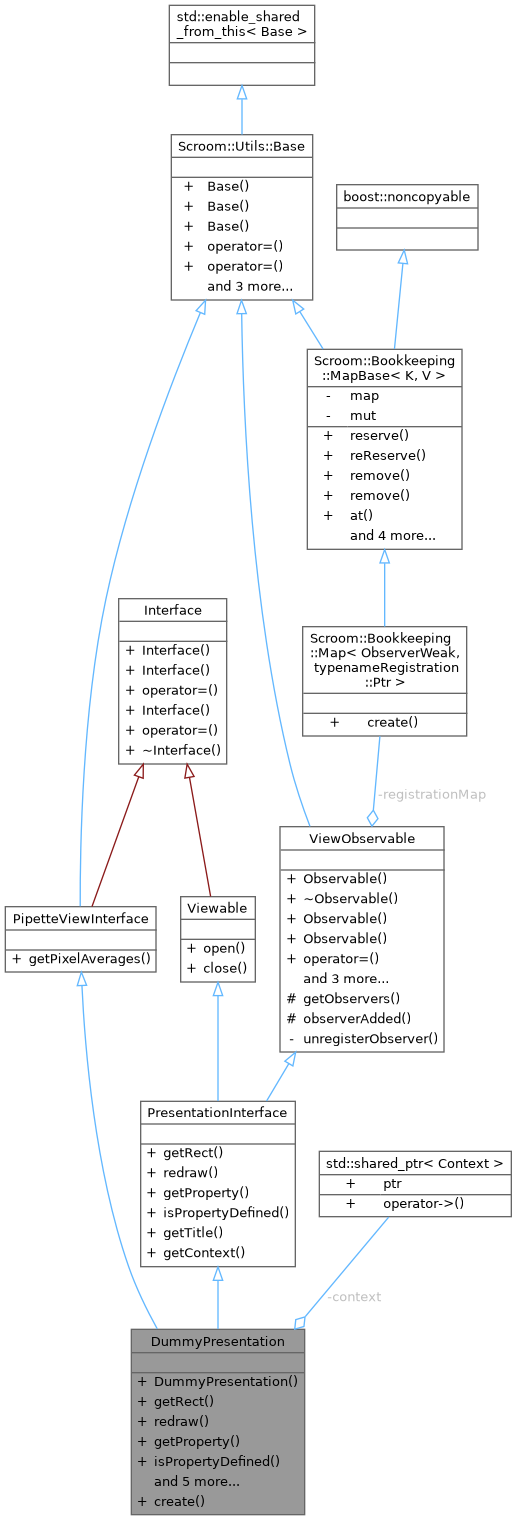

Collaboration diagram for DummyPresentation:

Public Member Functions
	DummyPresentation ()
Scroom::Utils::Rectangle< double >	getRect () override
void	redraw (ViewInterface::Ptr const &, cairo_t *, Scroom::Utils::Rectangle< double >, int) override
bool	getProperty (const std::string &, std::string &) override
bool	isPropertyDefined (const std::string &name) override
std::string	getTitle () override
void	open (ViewInterface::WeakPtr) override
void	close (ViewInterface::WeakPtr) override
PipetteLayerOperations::PipetteColor	getPixelAverages (Scroom::Utils::Rectangle< double >) override
Scroom::Utils::Context::ConstPtr	getContext () const override
Public Member Functions inherited from Scroom::Utils::Observable< T >
	Observable ()
	~Observable () override
	Observable (const Observable &)=delete
	Observable (Observable &&)=delete
Observable	operator= (const Observable &)=delete
Observable	operator= (Observable &&)=delete
Scroom::Bookkeeping::Token	registerStrongObserver (Observer const &observer)
Scroom::Bookkeeping::Token	registerObserver (ObserverWeak const &observer)
Public Member Functions inherited from Scroom::Utils::Base
	Base ()=default
	Base (const Base &)=delete
	Base (Base &&)=delete
Base &	operator= (const Base &)=delete
Base &	operator= (Base &&)=delete
virtual	~Base ()=default
template<typename R >
std::shared_ptr< R >	shared_from_this ()
template<typename R >
std::shared_ptr< R const >	shared_from_this () const

Static Public Member Functions
static PresentationInterface::Ptr	create ()

Private Attributes
Scroom::Utils::Context::Ptr	context

Additional Inherited Members
Public Types inherited from PresentationInterface
using	Ptr = std::shared_ptr< PresentationInterface >
using	WeakPtr = std::weak_ptr< PresentationInterface >
Public Types inherited from Viewable
using	Ptr = std::shared_ptr< Viewable >
using	WeakPtr = std::weak_ptr< Viewable >
Public Types inherited from Scroom::Utils::Observable< T >
using	Observer = std::shared_ptr< T >
using	Ptr = std::shared_ptr< Observable< T > >
Public Types inherited from PipetteViewInterface
using	Ptr = std::shared_ptr< PipetteViewInterface >
Protected Member Functions inherited from Scroom::Utils::Observable< T >
std::list< Observer >	getObservers ()
virtual void	observerAdded (Observer const &observer, Scroom::Bookkeeping::Token const &token)

Constructor & Destructor Documentation

DummyPresentation()

DummyPresentation::DummyPresentation ( )

inline

    : context(Scroom::Utils::Context::create())
  {
  }

Referenced by create().

Here is the caller graph for this function:

Member Function Documentation

close()

void DummyPresentation::close ( ViewInterface::WeakPtr  vi )

inlineoverridevirtual

Gets called just before the View is destroyed

Precondition

Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implements Viewable.

{};

create()

static PresentationInterface::Ptr DummyPresentation::create ( )

inlinestatic

{ return PresentationInterface::Ptr(new DummyPresentation()); }

Referenced by DummyView::createWithPresentation().

Here is the call graph for this function:

Here is the caller graph for this function:

getContext()

Scroom::Utils::Context::ConstPtr DummyPresentation::getContext ( ) const

inlineoverridevirtual

Implements PresentationInterface.

{ return context; }

getPixelAverages()

PipetteLayerOperations::PipetteColor DummyPresentation::getPixelAverages ( Scroom::Utils::Rectangle< double >  area )

inlineoverridevirtual

Returns the average pixel values for each component, contained in the area.

Parameters

area	selected area to get the pixel values from.

Implements PipetteViewInterface.

  {
    return {{"C", 1.0}};
  }

getProperty()

bool DummyPresentation::getProperty ( const std::string &  name, std::string &  value  )

inlineoverridevirtual

Return the value of the requested property

Parameters

[in]	name	The name of the requested property
[out]	value	The value of the requested property

Return values

true	if the property existed
false	if the property didn't exist

Implements PresentationInterface.

{ return false; }

getRect()

Scroom::Utils::Rectangle< double > DummyPresentation::getRect ( )

inlineoverridevirtual

Return the dimensions of your presentation

Implements PresentationInterface.

{ return {0, 0, 100, 100}; }

getTitle()

std::string DummyPresentation::getTitle ( )

inlineoverridevirtual

Return the title of the presentation

Implements PresentationInterface.

{ return {}; }

isPropertyDefined()

bool DummyPresentation::isPropertyDefined ( const std::string &  name )

inlineoverridevirtual

Return true if the named property exists

Implements PresentationInterface.

{ return PIPETTE_PROPERTY_NAME == name; }

open()

void DummyPresentation::open ( ViewInterface::WeakPtr  vi )

inlineoverridevirtual

Gets called just after the View is created

Precondition

Should be called from within a Gdk critical section (i.e. between gdk_threads_enter() and gdk_threads_leave() calls)

Implements Viewable.

{};

redraw()

void DummyPresentation::redraw ( ViewInterface::Ptr const &  vi, cairo_t *  cr, Scroom::Utils::Rectangle< double >  presentationArea, int  zoom  )

inlineoverridevirtual

Draw the requested ara at the requested zoom level

Parameters

vi	The ViewInterface on whose behalf the request is made
cr	The context to draw the area on
presentationArea	the area that is to be drawn. The given x and y coordinates should map on 0,0 of the given context cr.
zoom	The requested zoom level. One pixel of your presentation should have size 2**zoom when drawn. zoom may be negative.

Implements PresentationInterface.

  {
  }

Member Data Documentation

context

Scroom::Utils::Context::Ptr DummyPresentation::context

private

Referenced by getContext().

---

The documentation for this class was generated from the following file:

• plugins/pipette/test/pipette-tests.cc
