ThreadPool::PrivateData Class Reference

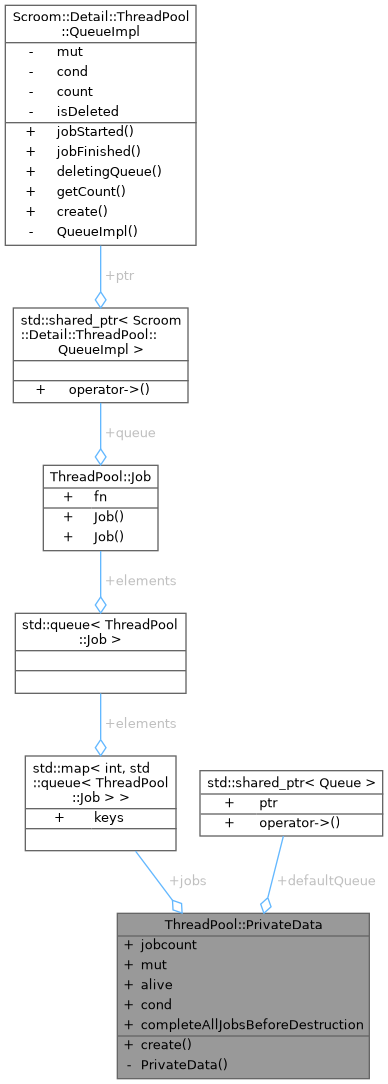

Collaboration diagram for ThreadPool::PrivateData:

Public Types
using	Ptr = std::shared_ptr< PrivateData >

Static Public Member Functions
static Ptr	create (bool completeAllJobsBeforeDestruction)

Public Attributes
unsigned int	jobcount {0}
boost::mutex	mut
bool	alive {true}
boost::condition_variable	cond
std::map< int, std::queue< Job > >	jobs
bool	completeAllJobsBeforeDestruction
Queue::Ptr	defaultQueue

Private Member Functions
	PrivateData (bool completeAllJobsBeforeDestruction)
	ThreadPool::PrivateData.

Detailed Description

Data needed by the threads to do their work.

It used to be that ThreadPool destruction blocked until the last thread finished, which was a major cause of deadlock when a ThreadPool thread held the last reference to its ThreadPool.

To fix this, it becomes necessary to destroy ThreadPool objects, even though there still are running threads. These threads need access to some data, in order to complete any currently running jobs, and in order to determine that they, themselves should finish. Objects of this class contain that data. Both ThreadPool objects, as well as threads running in a ThreadPool, will have a reference to objects of this class.

Waiting for all threads to finish is now done by the ThreadWaiter class, which has only one instance, declared static. Hence, it is always destroyed on the main thread, which never is part of any threadpool. Hence, the deadlock is avoided.

Member Typedef Documentation

Ptr

using ThreadPool::PrivateData::Ptr = std::shared_ptr<PrivateData>

Constructor & Destructor Documentation

PrivateData()

ThreadPool::PrivateData::PrivateData ( bool  completeAllJobsBeforeDestruction )

explicitprivate

ThreadPool::PrivateData.

  : completeAllJobsBeforeDestruction(completeAllJobsBeforeDestruction_)
  , defaultQueue(ThreadPool::defaultQueue())
{
}

Member Function Documentation

create()

ThreadPool::PrivateData::Ptr ThreadPool::PrivateData::create ( bool  completeAllJobsBeforeDestruction )

static

{
  return Ptr(new PrivateData(completeAllJobsBeforeDestruction));
}

Member Data Documentation

alive

bool ThreadPool::PrivateData::alive {true}

true if this ThreadPool is not in the process of being destroyed

{true};

completeAllJobsBeforeDestruction

bool ThreadPool::PrivateData::completeAllJobsBeforeDestruction

If true, this ThreadPool completes all jobs before being destroyed.

If it is false, the ThreadPool will remove unfinished jobs from the queue without executing them, and then self-destruct.

cond

boost::condition_variable ThreadPool::PrivateData::cond

For signalling newly queued jobs

defaultQueue

Queue::Ptr ThreadPool::PrivateData::defaultQueue

Reference to the default Queue.

If we don't store a reference to the default Queue here, then objects calling schedule() without a Queue argument (hence using the default Queue), may find that they are themselves holding the last reference to the ThreadPool::defaultQueue() object. That could result in deadlock, if the thread doing the scheduling is itself a ThreadPool thread. Recall that destroying a Queue blocks until any currently running tasks are finished, and hence a task would be infinitely waiting for itself to finish.

See also

https://github.com/kees-jan/scroom/issues/2

jobcount

unsigned int ThreadPool::PrivateData::jobcount {0}

current number of tasks in ThreadPool::jobs

{0};

jobs

std::map<int, std::queue<Job> > ThreadPool::PrivateData::jobs

Jobs that remain to be executed

The map contains for each priority that has jobs, a queue containing those jobs. Once a queue is empty, it is removed from the map. If a new job for that priority is scheduled, it is added again.

mut

boost::mutex ThreadPool::PrivateData::mut

For protecting ThreadPool::jobs

---

The documentation for this class was generated from the following files:

• libs/threadpool/inc/scroom/threadpool.hh
• libs/threadpool/src/threadpoolimpl.cc
