Source4Bpp Class Reference

#include <measure-framerate-stubs.hh>

Inheritance diagram for Source4Bpp:

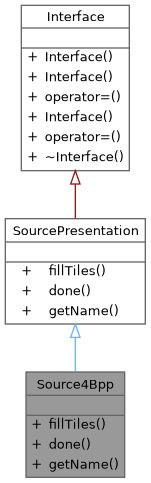

Collaboration diagram for Source4Bpp:

Public Member Functions
void	fillTiles (int startLine, int lineCount, int tileWidth, int firstTile, std::vector< Tile::Ptr > &tiles) override
void	done () override
std::string	getName () override

Additional Inherited Members
Public Types inherited from SourcePresentation
using	Ptr = std::shared_ptr< SourcePresentation >

Member Function Documentation

done()

void Source4Bpp::done ( )

inlineoverridevirtual

Done reading bitmap data

Any open files can be closed now

Implements SourcePresentation.

{};

fillTiles()

void Source4Bpp::fillTiles ( int  startLine, int  lineCount, int  tileWidth, int  firstTile, std::vector< Tile::Ptr > &  tiles  )

overridevirtual

Provide bitmap data

While the TiledBitmap is loaded, this function will be called several times. Each time, this function has to fill the provided tiles with bitmap data.

The given tiles are horizontally adjacent.

Parameters

startLine	y coordinate of the first line in the set of tiles
lineCount	The number of lines that are to be filled. This equals the height of the tiles
tileWidth	The width of one tile
firstTile	Index of the first tile provided. This means that the first x coordinate is firsttile * tileWidth
tiles	The tiles that are to be filled.

Implements SourcePresentation.

{
  for(const Tile::Ptr& tile: tiles)
  {
    byte* data = tile->data.get();
    for(int y = 0; y < lineCount; y++)
    {
      for(int x = 0; x < tileWidth / 2; x++)
      {
        byte const v = 2 * x + y;

        *data = ((v & 0xF) << 4) | ((v + 1) & 0xF);
        data++;
      }
    }
  }
}

getName()

std::string Source4Bpp::getName ( )

inlineoverridevirtual

Implements SourcePresentation.

{ return "Source4Bpp"; }

---

The documentation for this class was generated from the following files:

• libs/tiled-bitmap/tools/measure-framerate-stubs.hh
• libs/tiled-bitmap/tools/measure-framerate-stubs.cc
