MonochromeColormapHelper Class Reference

#include <colormappable.hh>

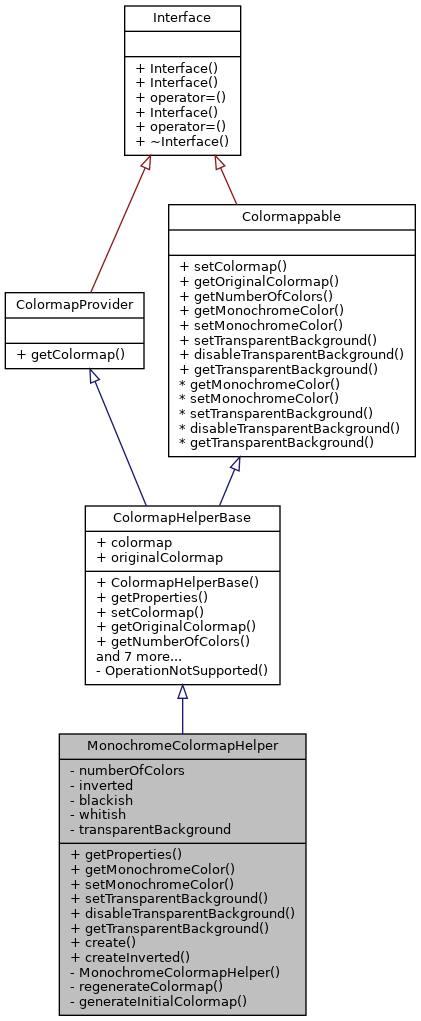

Inheritance diagram for MonochromeColormapHelper:

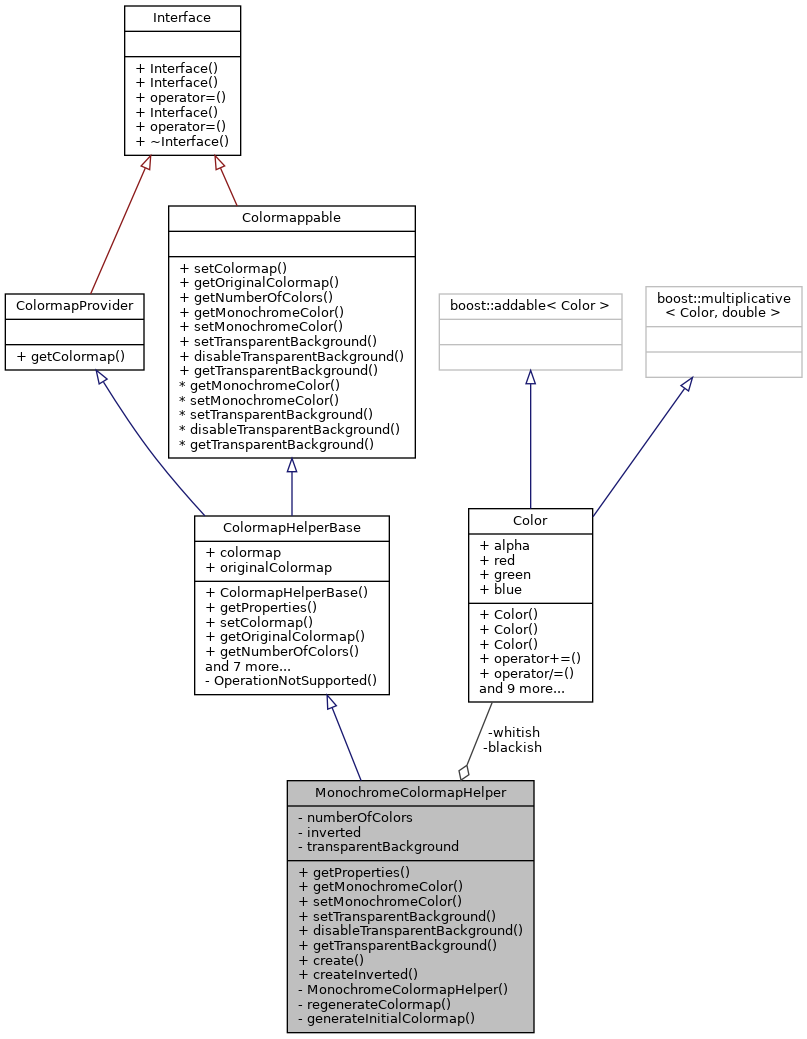

Collaboration diagram for MonochromeColormapHelper:

Public Member Functions
std::map< std::string, std::string >	getProperties () override
Color	getMonochromeColor () override
void	setMonochromeColor (const Color &c) override
void	setTransparentBackground () override
void	disableTransparentBackground () override
bool	getTransparentBackground () override
Public Member Functions inherited from ColormapHelperBase
	ColormapHelperBase (Colormap::Ptr const &colormap)
void	setColormap (Colormap::Ptr colormap) override
Colormap::Ptr	getOriginalColormap () override
int	getNumberOfColors () override
Colormap::Ptr	getColormap () override
virtual void	setOriginalColormap (Colormap::Ptr colormap)
For monochrome presentations: Set/Get the current color
Manipulate the "Transparent Background" setting of the presentation

Static Public Member Functions
static Ptr	create (int numberOfColors)
static Ptr	createInverted (int numberOfColors)

Private Member Functions
	MonochromeColormapHelper (int numberOfColors, bool inverted)
void	regenerateColormap ()

Static Private Member Functions
static Colormap::Ptr	generateInitialColormap (int numberOfColors, bool inverted)

Private Attributes
int	numberOfColors
bool	inverted
Color	blackish
Color	whitish
bool	transparentBackground {false}

Additional Inherited Members
Public Types inherited from ColormapHelperBase
using	Ptr = boost::shared_ptr< ColormapHelperBase >
Public Types inherited from ColormapProvider
using	Ptr = boost::shared_ptr< ColormapProvider >
Public Types inherited from Colormappable
using	Ptr = boost::shared_ptr< Colormappable >
using	WeakPtr = boost::weak_ptr< Colormappable >
Public Attributes inherited from ColormapHelperBase
Colormap::Ptr	colormap
Colormap::Ptr	originalColormap

Constructor & Destructor Documentation

MonochromeColormapHelper()

MonochromeColormapHelper::MonochromeColormapHelper ( int  numberOfColors, bool  inverted  )

private

  : ColormapHelperBase(generateInitialColormap(numberOfColors_, inverted_))
  , numberOfColors(numberOfColors_)
  , inverted(inverted_)
  , blackish(Color(inverted_ ? 1 : 0))
  , whitish(Color(inverted_ ? 0 : 1))

{
}

Referenced by create(), and createInverted().

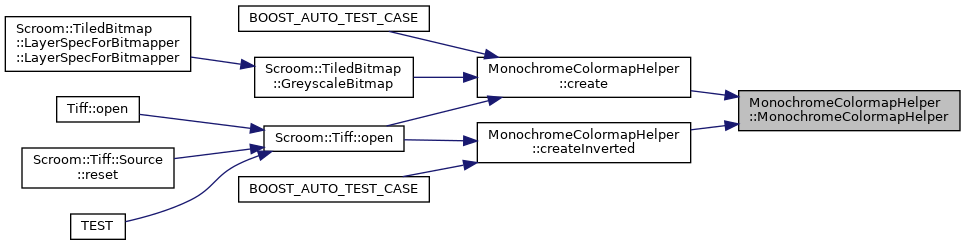

Here is the caller graph for this function:

Member Function Documentation

create()

MonochromeColormapHelper::Ptr MonochromeColormapHelper::create ( int  numberOfColors )

static

{
  return Ptr(new MonochromeColormapHelper(numberOfColors, false));
}

Referenced by BOOST_AUTO_TEST_CASE(), Scroom::TiledBitmap::GreyscaleBitmap(), and Scroom::Tiff::open().

Here is the call graph for this function:

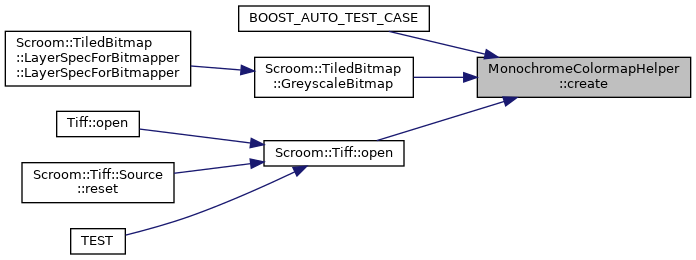

Here is the caller graph for this function:

createInverted()

MonochromeColormapHelper::Ptr MonochromeColormapHelper::createInverted ( int  numberOfColors )

static

{
  return Ptr(new MonochromeColormapHelper(numberOfColors, true));
}

Referenced by BOOST_AUTO_TEST_CASE(), and Scroom::Tiff::open().

Here is the call graph for this function:

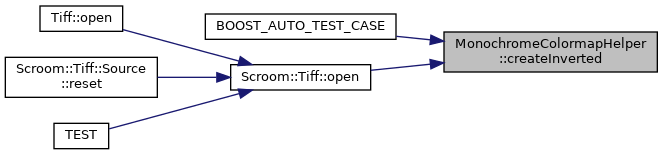

Here is the caller graph for this function:

disableTransparentBackground()

void MonochromeColormapHelper::disableTransparentBackground ( )

overridevirtual

Reimplemented from ColormapHelperBase.

{
  transparentBackground = false;
  regenerateColormap();
}

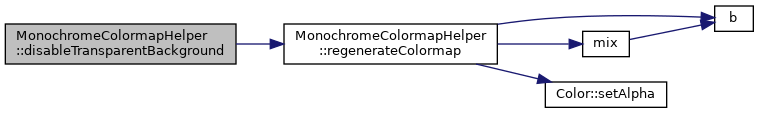

Here is the call graph for this function:

generateInitialColormap()

Colormap::Ptr MonochromeColormapHelper::generateInitialColormap ( int  numberOfColors, bool  inverted  )

staticprivate

{
  return inverted ? Colormap::createDefaultInverted(numberOfColors) : Colormap::createDefault(numberOfColors);
}

Here is the call graph for this function:

getMonochromeColor()

Color MonochromeColormapHelper::getMonochromeColor ( )

overridevirtual

Reimplemented from ColormapHelperBase.

{ return inverted ? whitish : blackish; }

getProperties()

std::map< std::string, std::string > MonochromeColormapHelper::getProperties ( )

overridevirtual

Implements ColormapHelperBase.

{
  return {{MONOCHROME_COLORMAPPABLE_PROPERTY_NAME, ""}};
}

getTransparentBackground()

bool MonochromeColormapHelper::getTransparentBackground ( )

overridevirtual

Reimplemented from ColormapHelperBase.

{ return transparentBackground; }

regenerateColormap()

void MonochromeColormapHelper::regenerateColormap ( )

private

{
  Color w = whitish;
  Color b = blackish;
  if(transparentBackground)
  {
    if(inverted)
    {
      b.setAlpha(0);
    }
    else
    {
      w.setAlpha(0);
    }
  }

  for(int i = 0; i < numberOfColors; i++)
  {
    colormap->colors[i] = mix(w, b, 1.0 * i / (numberOfColors - 1));
  }
}

Referenced by disableTransparentBackground(), setMonochromeColor(), and setTransparentBackground().

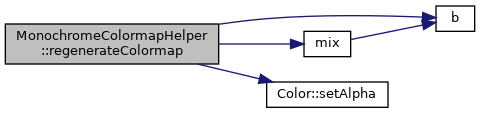

Here is the call graph for this function:

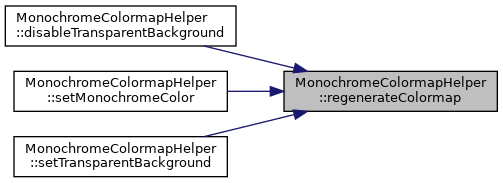

Here is the caller graph for this function:

setMonochromeColor()

void MonochromeColormapHelper::setMonochromeColor ( const Color &  c )

overridevirtual

Reimplemented from ColormapHelperBase.

{
  if(inverted)
  {
    whitish = c;
  }
  else
  {
    blackish = c;
  }

  regenerateColormap();
}

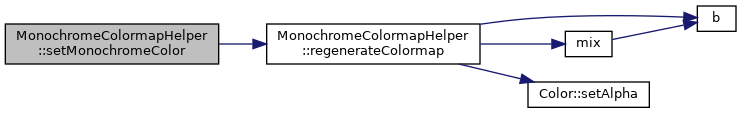

Here is the call graph for this function:

setTransparentBackground()

void MonochromeColormapHelper::setTransparentBackground ( )

overridevirtual

Reimplemented from ColormapHelperBase.

{
  transparentBackground = true;
  regenerateColormap();
}

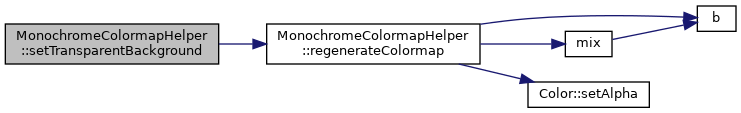

Here is the call graph for this function:

Member Data Documentation

blackish

Color MonochromeColormapHelper::blackish

private

Referenced by getMonochromeColor(), regenerateColormap(), and setMonochromeColor().

inverted

bool MonochromeColormapHelper::inverted

private

Referenced by generateInitialColormap(), getMonochromeColor(), regenerateColormap(), and setMonochromeColor().

numberOfColors

int MonochromeColormapHelper::numberOfColors

private

Referenced by create(), createInverted(), generateInitialColormap(), and regenerateColormap().

transparentBackground

bool MonochromeColormapHelper::transparentBackground {false}

private

Referenced by disableTransparentBackground(), getTransparentBackground(), regenerateColormap(), and setTransparentBackground().

whitish

Color MonochromeColormapHelper::whitish

private

Referenced by getMonochromeColor(), regenerateColormap(), and setMonochromeColor().

---

The documentation for this class was generated from the following files:

• inc/scroom/colormappable.hh
• libs/scroom/src/colormap-helpers.cc
